Atrium Winch for Shopping Malls

Atrium Winch for Shopping Malls

The integrated cable winch for shopping mall atriums is a highly efficient, convenient, and practical hanging device designed for decorative hanging in malls, supermarkets, exhibition halls, and other public spaces. It can be customized according to the cable diameter and length to suit different application scenarios.

  1. It adopts an integrated design of steel wire rope and cable, integrating multiple functions such as power management, cable storage, and safety protection, and can provide power to the lifted object while hanging and lifting.
  2. It is one of the essential equipment in public places such as shopping malls and supermarkets.
  3. Provided efficient and convenient solutions for the transportation of personnel and goods.
Chat Now

Atrium Winch for Shopping Malls

The integrated cable winch for shopping mall atriums is a highly efficient, convenient, and practical hanging device designed for decorative hanging in malls, supermarkets, exhibition halls, and other public spaces. It can be customized according to the cable diameter and length to suit different application scenarios.

  1. It adopts an integrated design of steel wire rope and cable, integrating multiple functions such as power management, cable storage, and safety protection, and can provide power to the lifted object while hanging and lifting.
  2. It is one of the essential equipment in public places such as shopping malls and supermarkets.
  3. Provided efficient and convenient solutions for the transportation of personnel and goods.
Chat Now

Product Details

Model: 500 KG Motor power: 0.75kw Gearbox transmission ratio: 240:1 Gearbox output speed: 6rp/min Rope output speed: 4.5m/min Rated output torque of motor reducer: 950N m
Weight increase: 500kg Self-weight: 115kg Roll diameter: 245mm Steel wire rope and cable diameter: 10mm Roll rope capacity: 30m

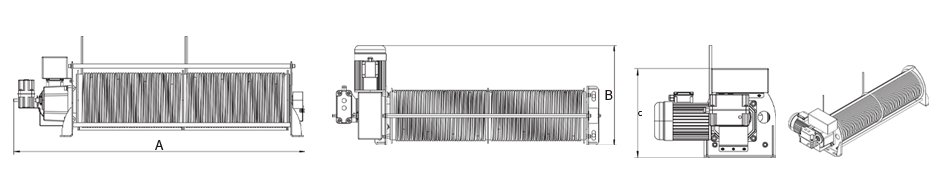

Model: 500KG A(Length) 1369mm B(Width) 508mm C(Height) 373mm



Model Motor power Rated Pull Cable diameter Wire rope length Drum speed Average rope speed Voltage (single item)
600KG 0.75kw 600kg 8mm 60m 7rpm 4.22m/min 220v50Hz

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
