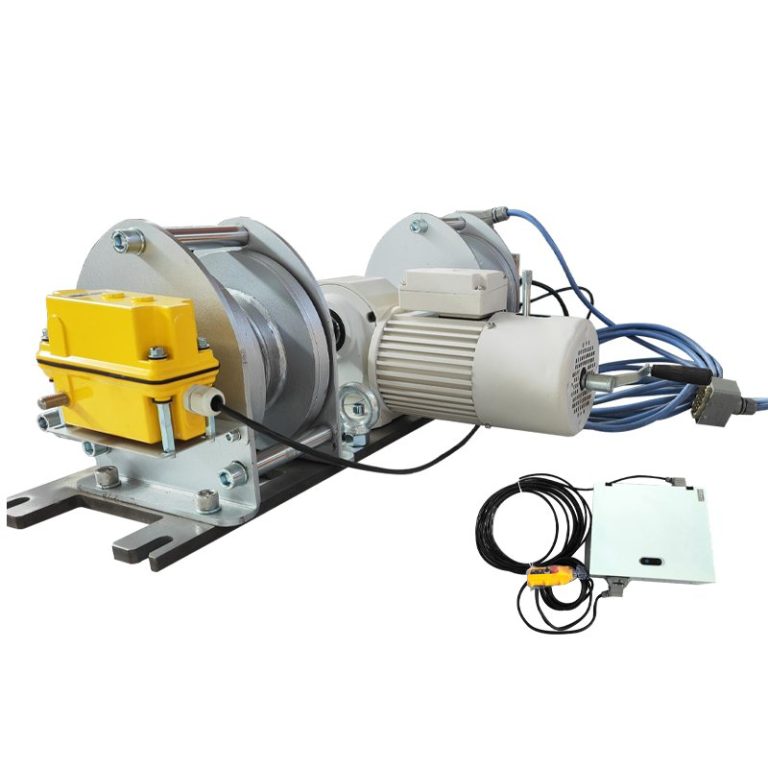

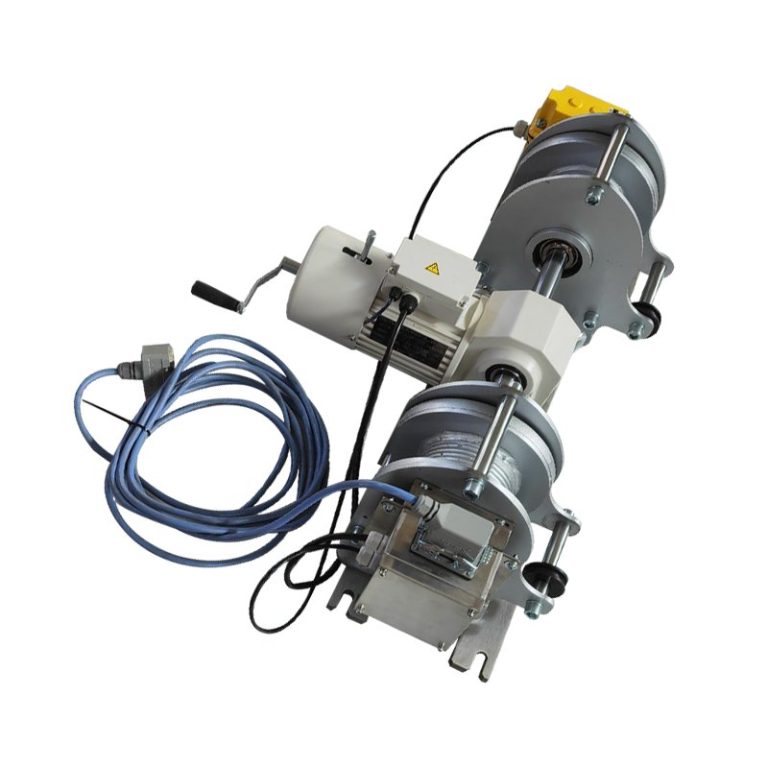

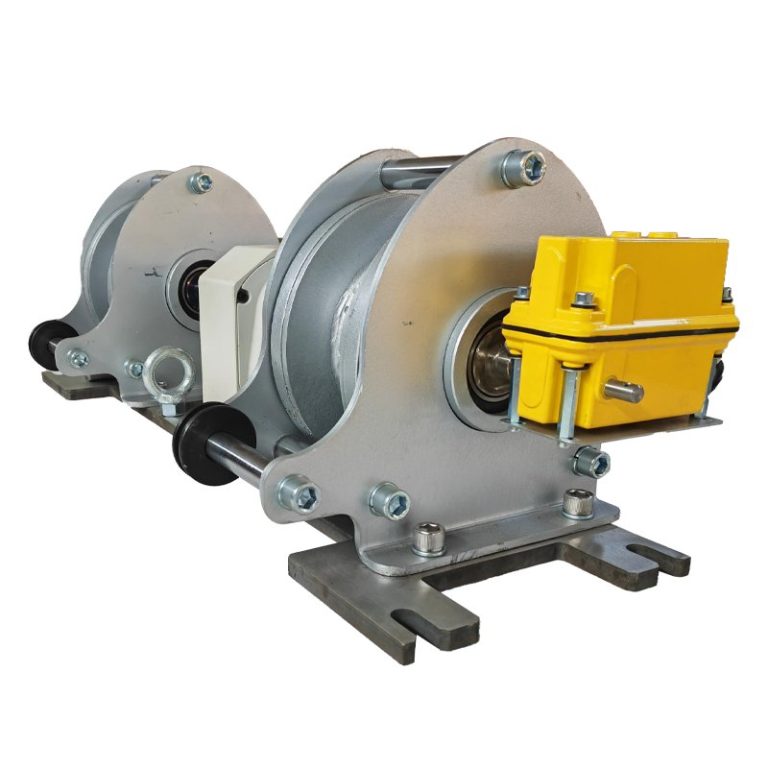

This is a double-drum winch with two drums distributed on the left and right sides of the motor, connected by an extension shaft, effectively differentiating the distance between the two drums. The base is connected by a stainless-steel plate, each drum carries a guide sheave directly in front of it, and the drums are designed with rope grooves that can hold up to 8 meters of rope per drum. In addition, the winches are equipped with travel limits, including four gear limits with two steps in each direction.

1. Extended shaft connection: connecting the two drums by an extended shaft effectively distinguishes the distance between the two drums and ensures the perpendicularity of the two lifting points to the lifted object during the lifting process.
2. Stainless steel base: stainless steel plate is used to connect the base, which is corrosion-resistant and improves the service life of the product.
3. Rope slot design: The drum comes with a rope slot design that can hold up to 8 meters of rope, making it convenient for users.
4. Stroke Limit: Equipped with a four-stop limit, with two stops in each direction, which enables precise control and adjustment of the position and height of the roll-up.
5. Manual release function: The motor of the winch is equipped with a manual release function, which can be used to achieve the raising or lowering operation by the hand crank in case of emergency, improving the flexibility of emergency use.
6. Stainless steel distribution box: equipped with stainless steel distribution box, equipped with aviation plug on it, with features of waterproof and dustproof, convenient for users to plug or unplug the power cable.
