Dual-rope Synchronous Winch

Dual-rope Synchronous Winch

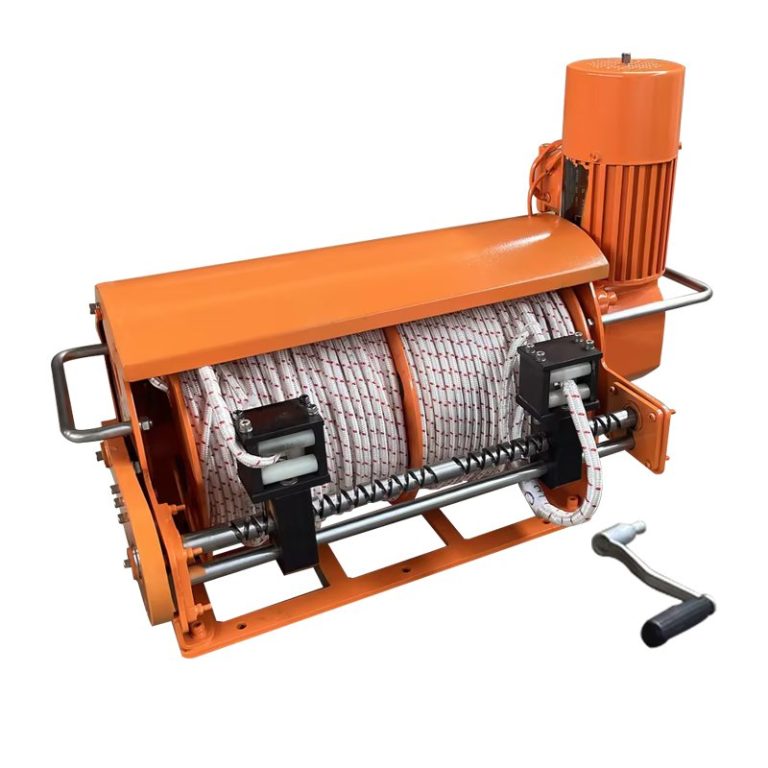

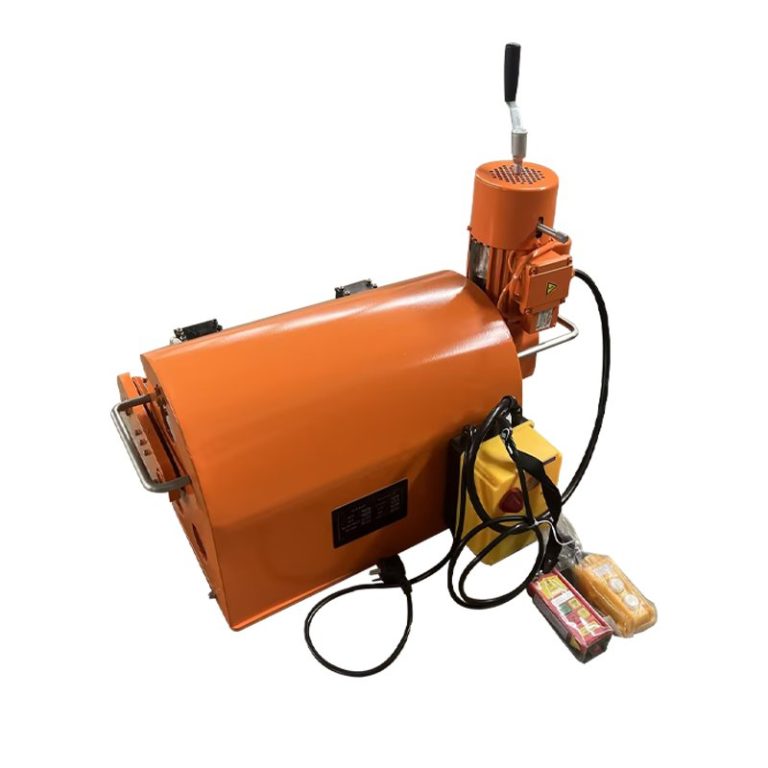

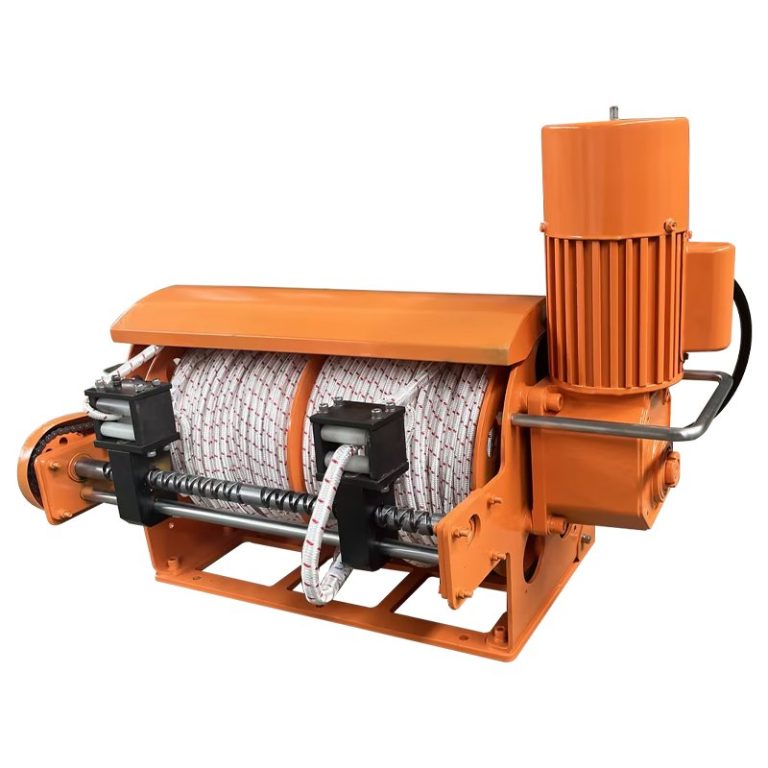

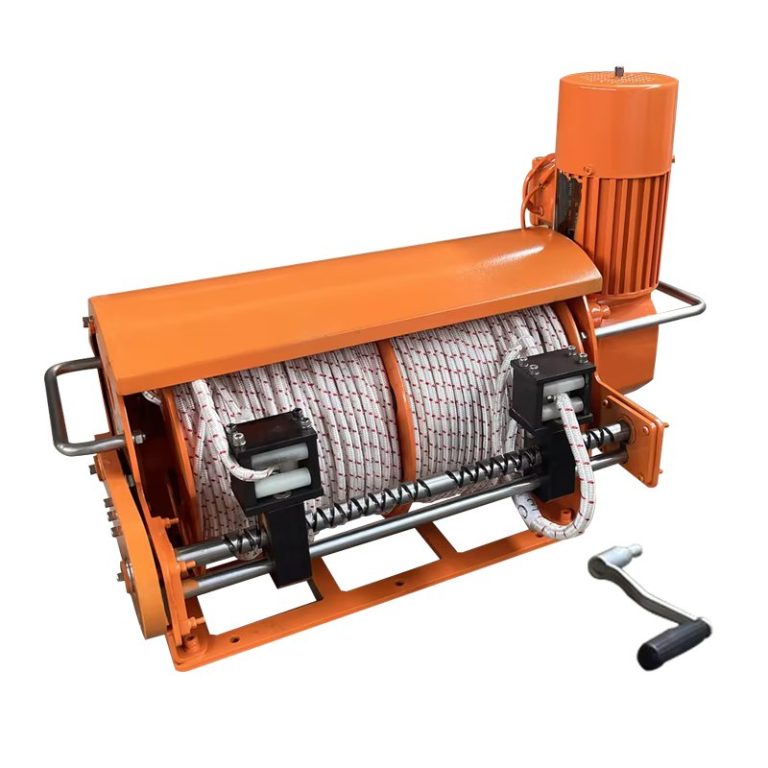

This dual-rope synchronous winch features advanced design and technology, equipped with a zoned automatic rope arranger for orderly rope arrangement. It offers both wired handle and wireless remote-control options for convenient operation. Additionally, it can be hand-cranked, providing a dual-mode function (manual and electric) for a user-friendly experience.

  1. Dual-rope synchronous winch: Ensures more stable and even rope winding, improving work efficiency.
  2. Zoned automatic rope arranger: Organizes ropes in an orderly manner, reducing the risk of rope tangling.
  3. Dual control modes: Wired handle and wireless remote-control options offer flexible and convenient operation, suitable for various work scenarios.
  4. Hand-cranked operation: Allows usage even without a power source.
  5. Side handles: Facilitates easy carrying and transportation.
Chat Now

Dual-rope Synchronous Winch

This dual-rope synchronous winch features advanced design and technology, equipped with a zoned automatic rope arranger for orderly rope arrangement. It offers both wired handle and wireless remote-control options for convenient operation. Additionally, it can be hand-cranked, providing a dual-mode function (manual and electric) for a user-friendly experience.

  1. Dual-rope synchronous winch: Ensures more stable and even rope winding, improving work efficiency.
  2. Zoned automatic rope arranger: Organizes ropes in an orderly manner, reducing the risk of rope tangling.
  3. Dual control modes: Wired handle and wireless remote-control options offer flexible and convenient operation, suitable for various work scenarios.
  4. Hand-cranked operation: Allows usage even without a power source.
  5. Side handles: Facilitates easy carrying and transportation.
Chat Now

Product Details

Model:50 KG Motor power:0.2 KW Rope out speed:6-11m/min Motor reducer Rated output torque:90N.m
Reduction gear ratio:100:1 Reducer Output Speed:15rp/min Lifting weight:50 kg Self-weight:55kg
Reel Diameter:121mm Diameter of Dyneema rope:8mm Rope capacity per reel section:100m

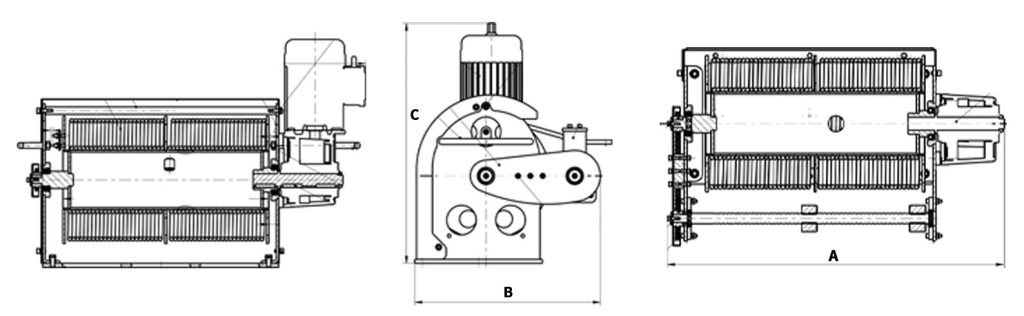

Model:50 KG A(Length):649mm B(Width):280mm C(Height):541mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
