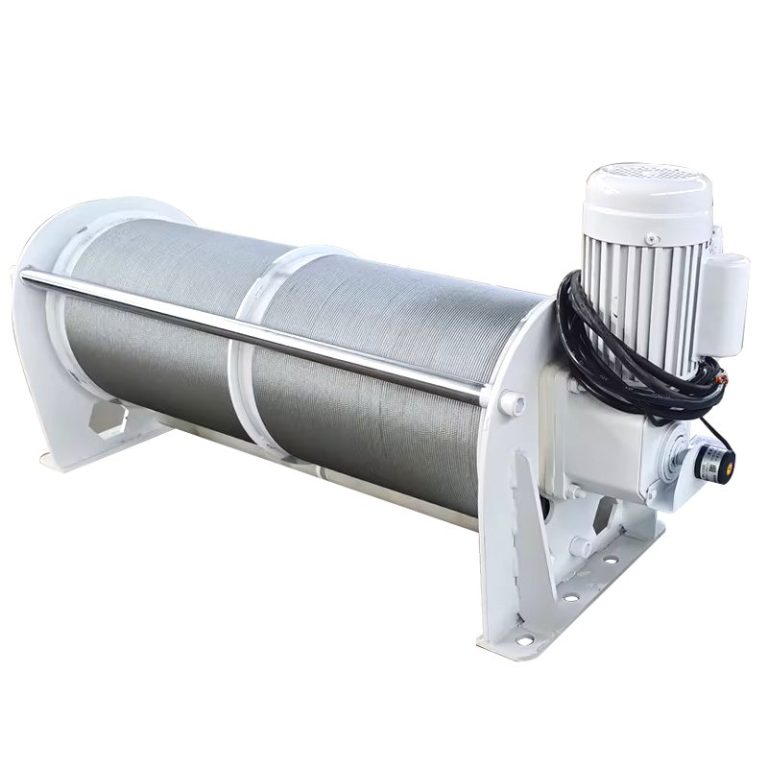

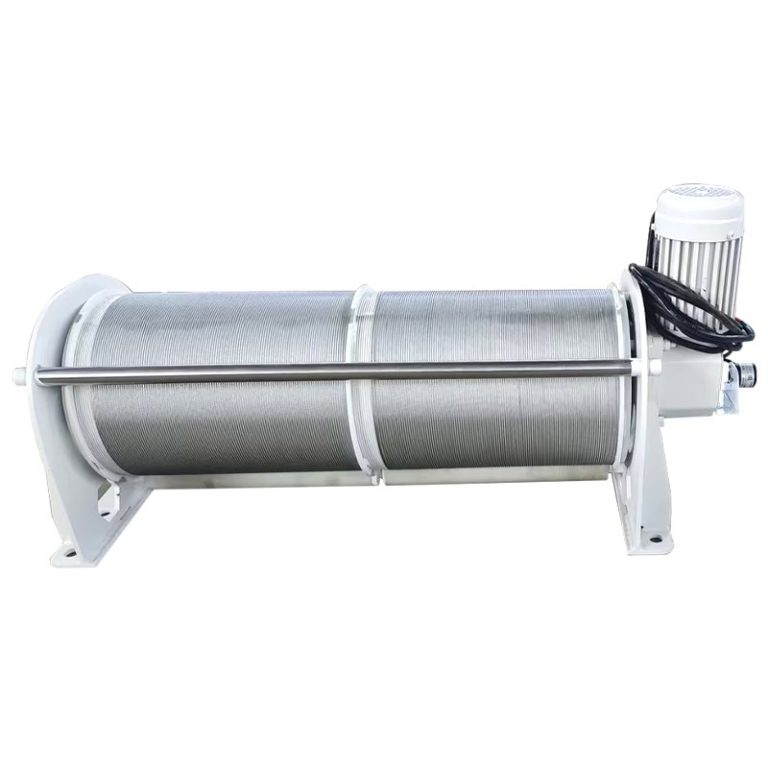

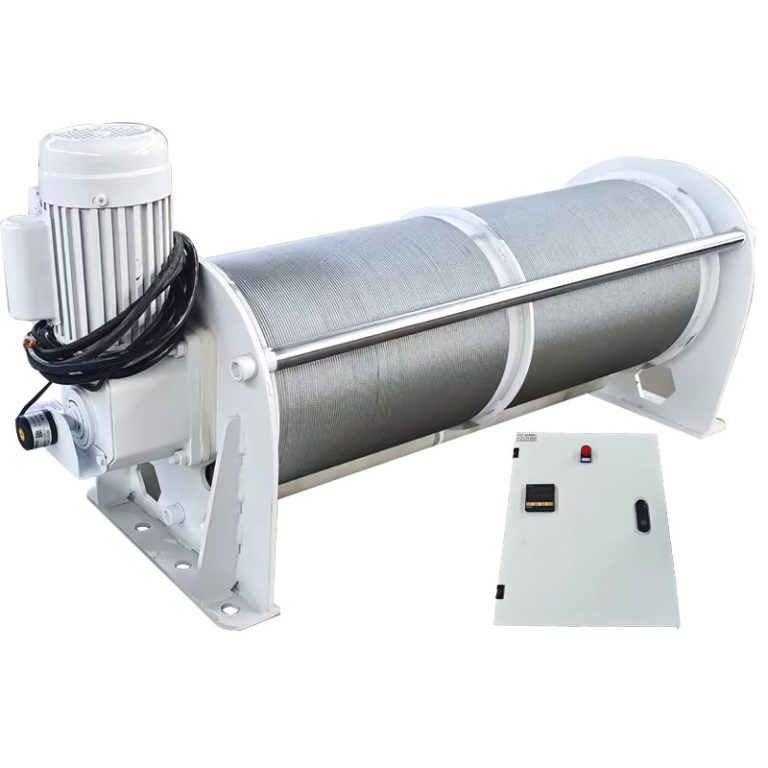

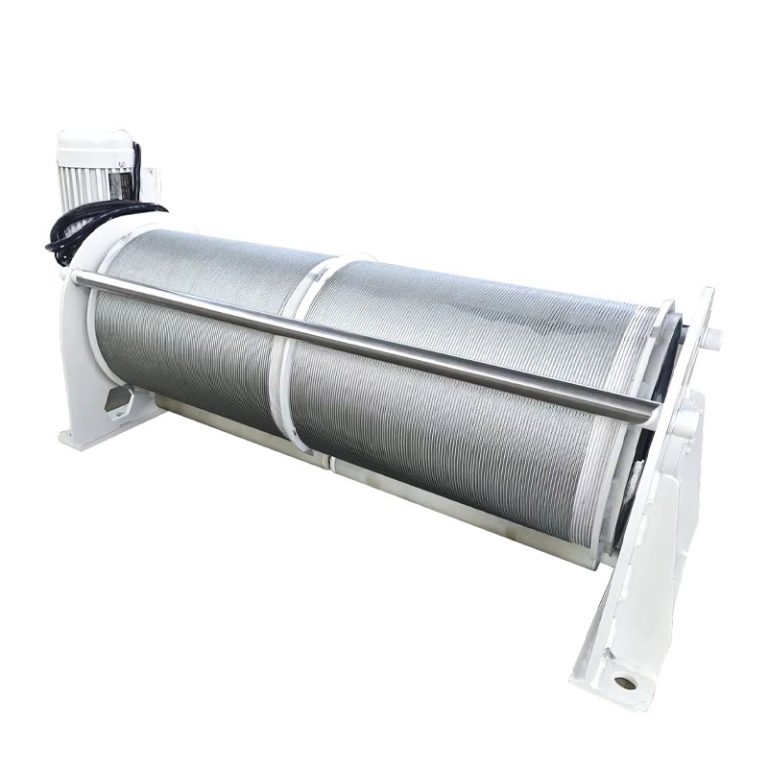

This dual-rope synchronous winch, designed for lifting wall inspection robot, is installed on the roof of the building to achieve the lifting operation of the robot, and can also be applied to other lifting operation scenarios. The whole machine is designed to be lightweight, with lighter weight and convenient remote control. In addition, it can be assembled in various ways, sitting mounted, side mounted and hoisted.

1. The design of the rope groove reel with pressure roller ensures that the double ropes can be synchronized during the working process and will not be derailing, thus improving working efficiency and safety.
2. Adopting direct cross shaft geared motor can provide more stable and efficient power output to ensure the smooth running of the equipment, meanwhile reducing energy consumption and prolonging the service life of the equipment.
3. Equipped with an electromagnetic brake, it is capable of braking quickly when stopping work, ensuring safe and efficient operation, while reducing noise and enhancing operating comfort.
4. The equipment is equipped with a direct-display meter, which allows the user to monitor the rope length data at any time to understand the work progress and rope length usage, facilitating the management and adjustment of the work plan, and improving the work efficiency and accuracy.
5. Various assembly methods adapt to different working scenarios, providing more choices.
