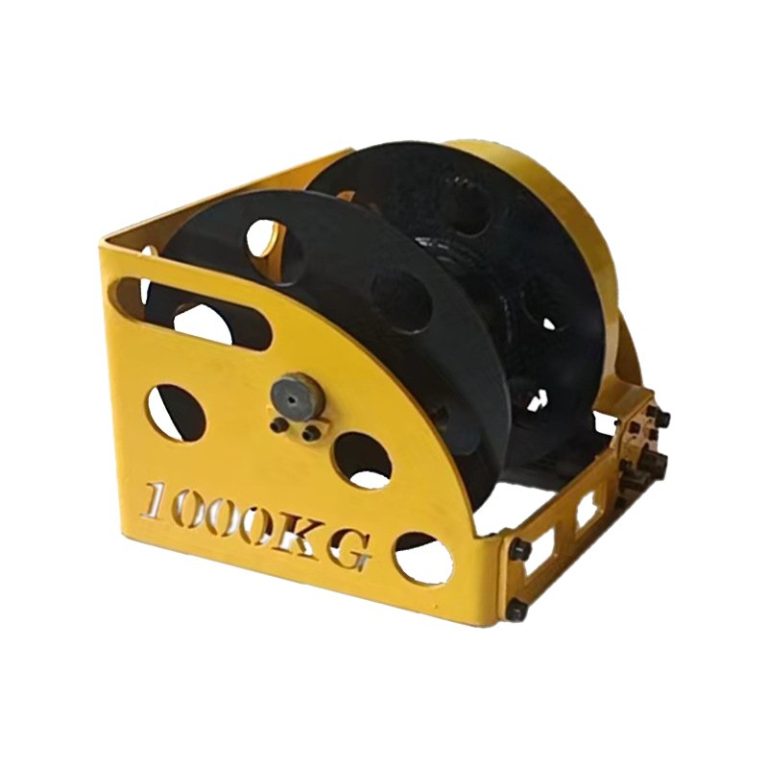

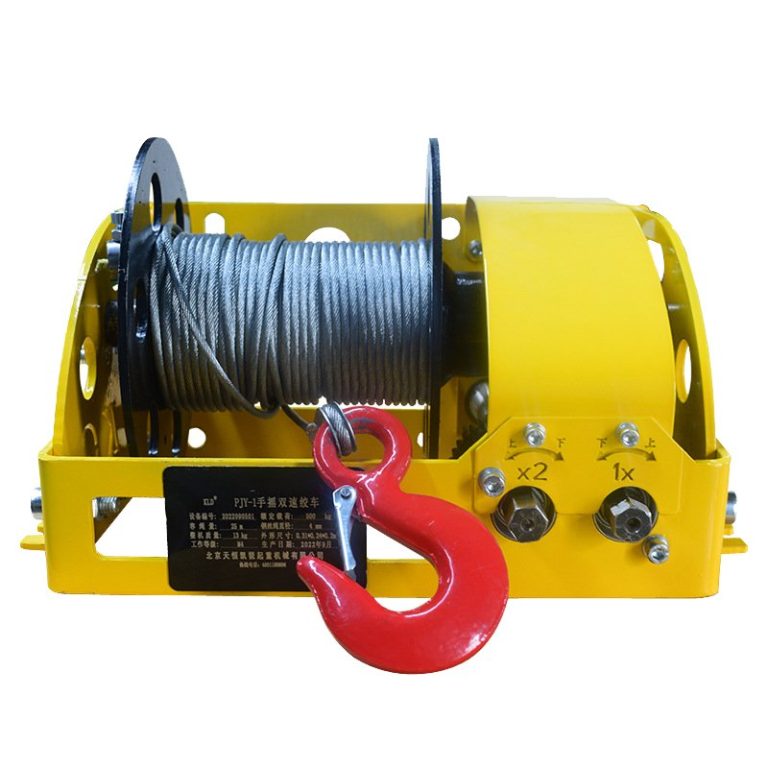

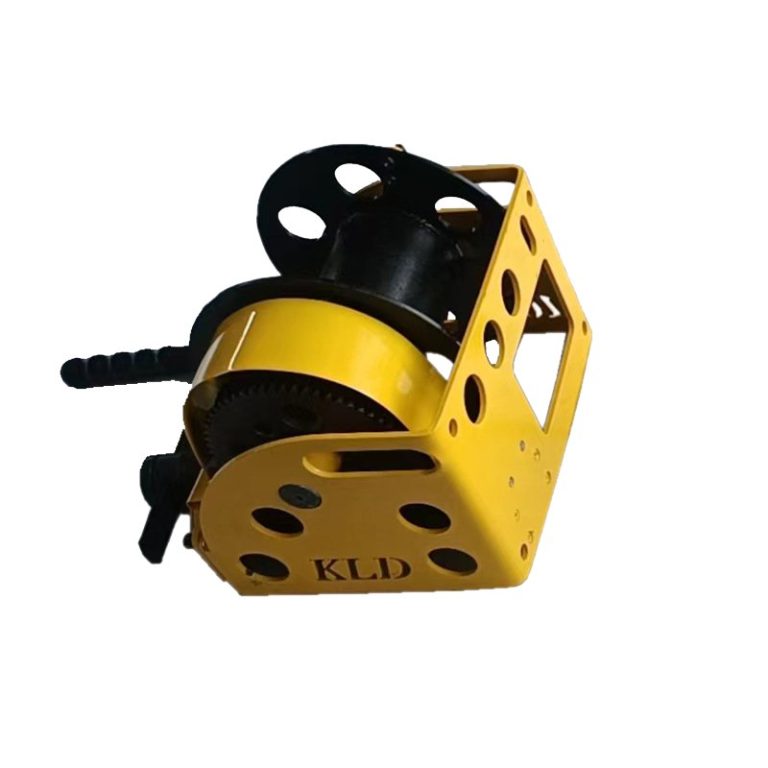

Hand-cranked Dual-speed Winch

Hand-cranked Dual-speed Winch

The ultimate hand-operated dual-speed winch, compatible with electric and pneumatic tools, facilitates rapid rope retrieval under no load and effortlessly handles heavy-duty tasks with reduced manual effort.

  1. This product is designed to be compact, aesthetically pleasing, and lightweight. It can be installed in two ways: vertically or horizontally.
  2. The product features fast speed under no-load conditions and slow speed under load. It is suitable for applications such as lifting, pulling, and securing, offering advantages such as ease of use and high efficiency.
Chat Now

Hand-cranked Dual-speed Winch

The ultimate hand-operated dual-speed winch, compatible with electric and pneumatic tools, facilitates rapid rope retrieval under no load and effortlessly handles heavy-duty tasks with reduced manual effort.

  1. This product is designed to be compact, aesthetically pleasing, and lightweight. It can be installed in two ways: vertically or horizontally.
  2. The product features fast speed under no-load conditions and slow speed under load. It is suitable for applications such as lifting, pulling, and securing, offering advantages such as ease of use and high efficiency.
Chat Now

Product Details

Model Gear ratio Maximum lifting capacity Weight of the winch Diameter of the steel cable Drum capacity
500 KG 61:1 / 30.5:1 500 KG 13kg 6mm 100m
1000 KG 61:1 / 124:1 1000 KG 22kg 10mm 50m
2000 KG 82:1 / 164:1 2000 KG 65kg 12mm 60m
3000 KG 100:1 / 200:1 3000 KG 100kg 14mm 70m
5000 KG 240:1 / 480:1 5000 KG 240kg 18mm 70m

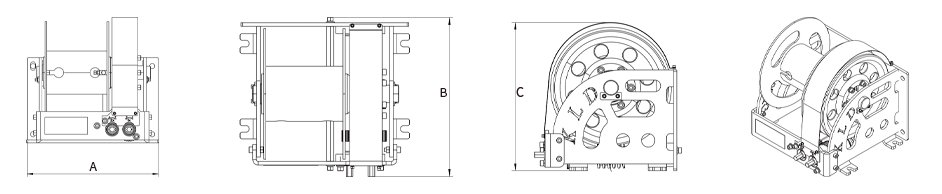

Model A(Length) B(Width) C(Height)
500 KG 310mm 240mm 205mm
1000 KG 332mm 281mm 257mm
2000 KG 426mm 418mm 432mm
3000 KG 438mm 492mm 525mm
5000 KG 620mm 714mm 765mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
