Industrial Winch

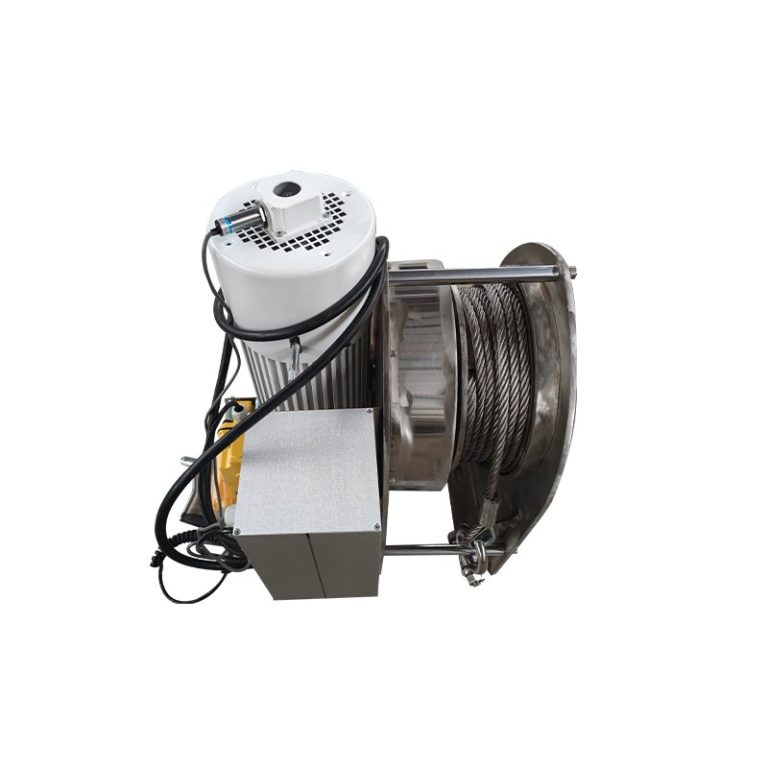

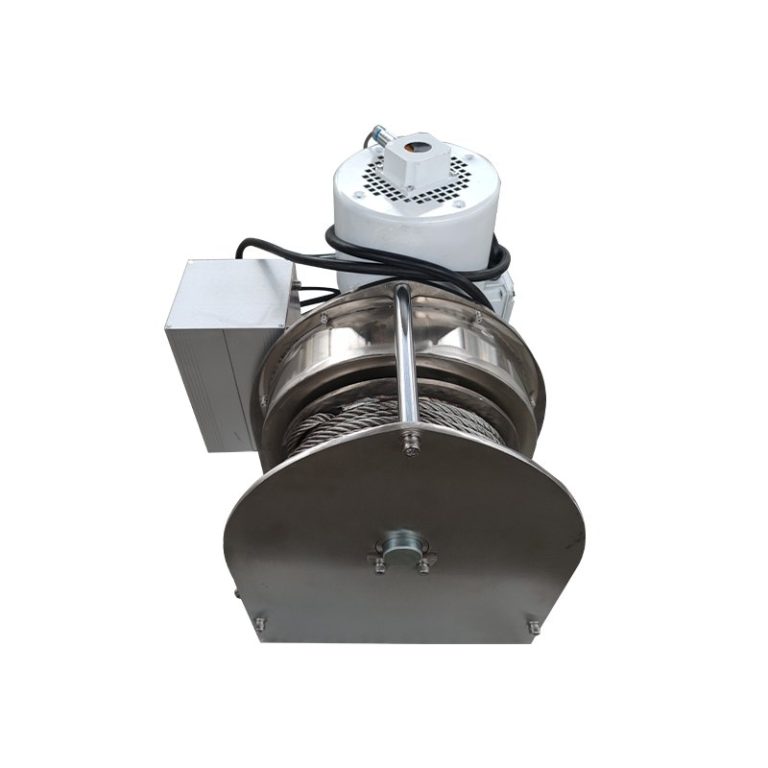

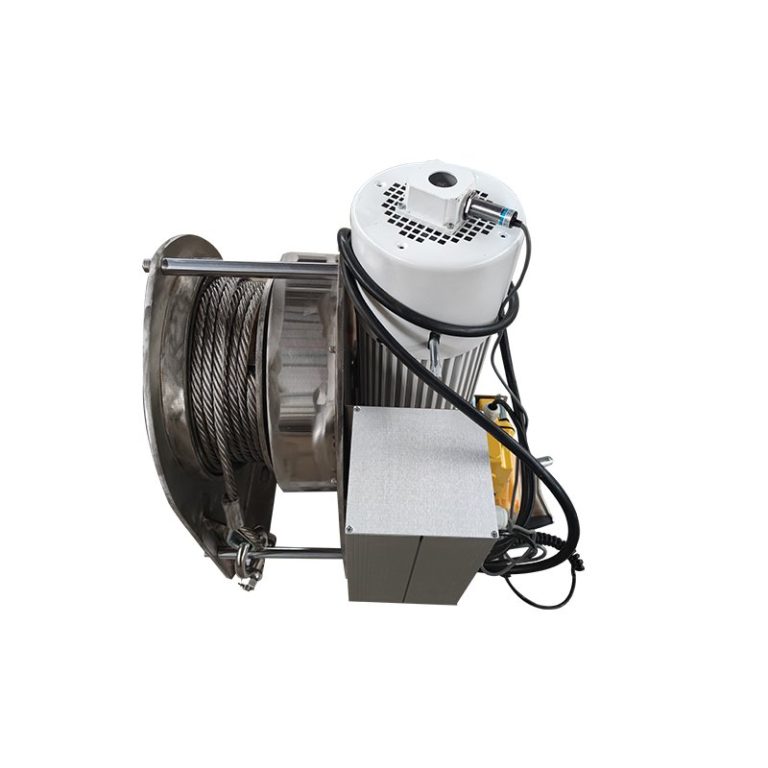

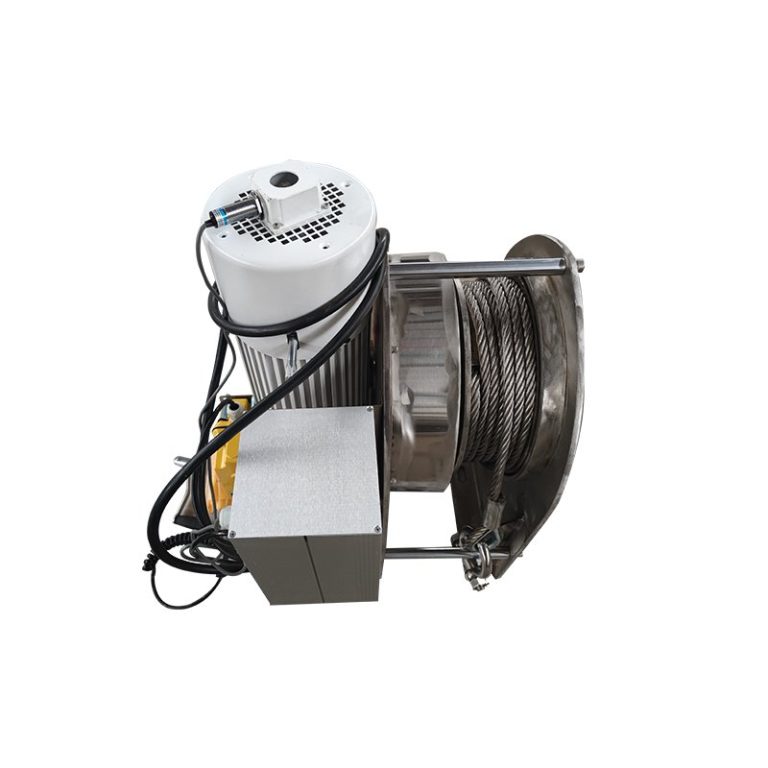

This is a marine stainless-steel winch, mainly used for traction or lifting, suitable for equipment supporting use. It can be intelligently programmed by P LC for multiple linkage and intelligent operation. The product is corrosion-resistant, abrasion-resistant, high temperature-resistant, etc. It is suitable for ships, harbors, wharves and other occasions.

  1. The motor is an integrated right-angle shaft motor, offering energy efficiency, high performance, and quiet operation.
  2. Includes a manual crank adjustment function on the rear shaft for emergency manual operation.
  3. A detection sensor in the handle prevents injuries in case of misuse.
  4. Mechanical height limiter four points any position can be set.
  5. Heart-shaped structure design is beautiful and compact with high structural strength.
  6. The nickel-plated drawbar is designed to be clean and smooth.
Chat Now

Industrial Winch

This is a marine stainless-steel winch, mainly used for traction or lifting, suitable for equipment supporting use. It can be intelligently programmed by P LC for multiple linkage and intelligent operation. The product is corrosion-resistant, abrasion-resistant, high temperature-resistant, etc. It is suitable for ships, harbors, wharves and other occasions.

  1. The motor is an integrated right-angle shaft motor, offering energy efficiency, high performance, and quiet operation.
  2. Includes a manual crank adjustment function on the rear shaft for emergency manual operation.
  3. A detection sensor in the handle prevents injuries in case of misuse.
  4. Mechanical height limiter four points any position can be set.
  5. Heart-shaped structure design is beautiful and compact with high structural strength.
  6. The nickel-plated drawbar is designed to be clean and smooth.
Chat Now

Product Details

Model Rope diameter Rope length Motor power Reel speed Average rope speed
1000KG 10mm 30m 0.75kw 6.37rpm 3m/min
2000kg 12mm 30m 1.5kw 6.37rpm 3m/min
3000kg 14mm 30m 2.2kw 2.28rpm 1.5m/min
5000kg 18mm 30m 2.2kw 1.5rpm 1.1m/min

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
