Integrated Manual Electric Dual-Mode Winch

Integrated Manual Electric Dual-Mode Winch

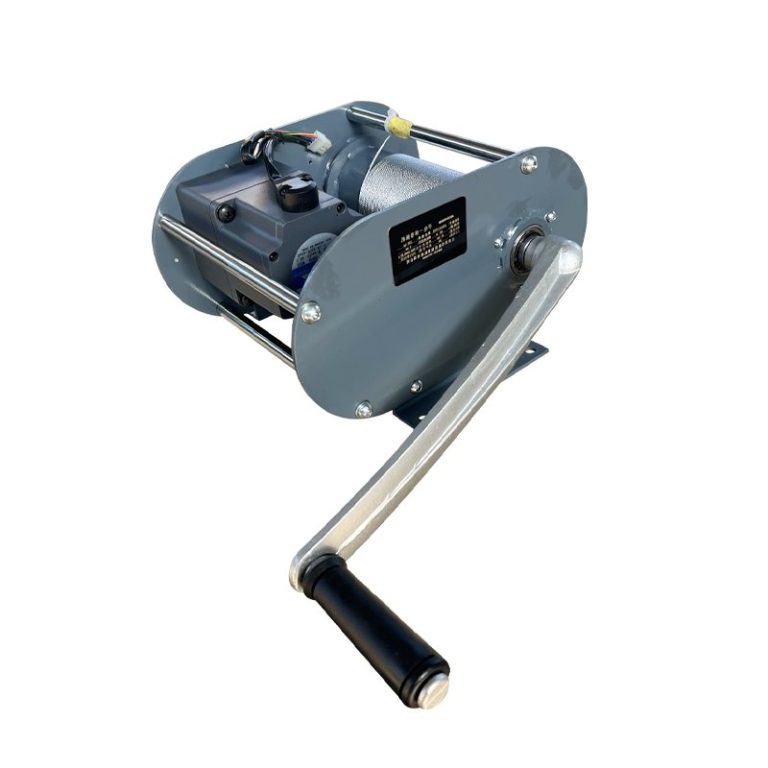

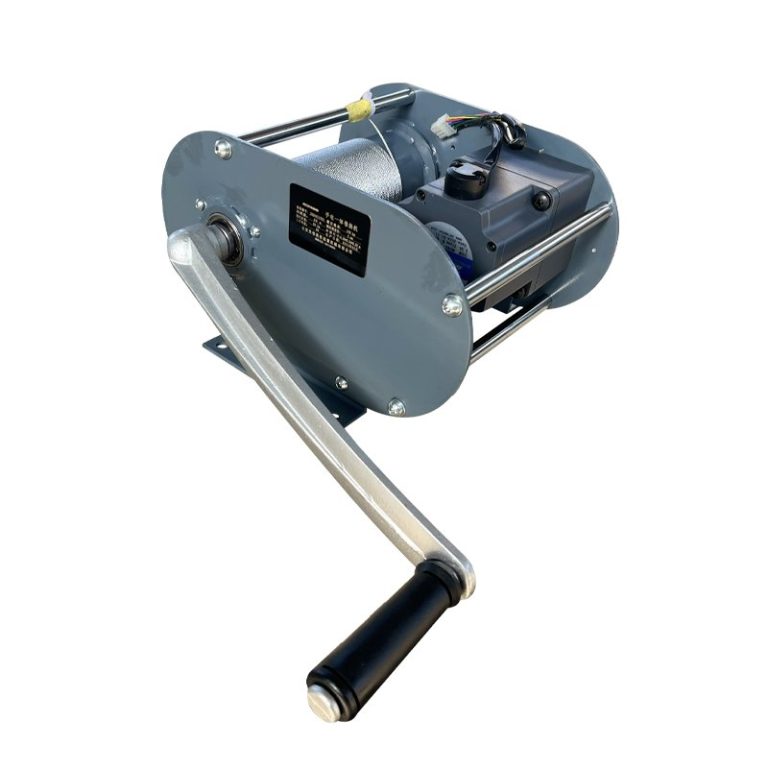

This product is an integrated hand-electric dual-mode winch, featuring both electric and manual modes that users can switch between freely. It combines traditional electromagnetic braking with an innovative front-mounted torsion spring brake system, enhancing safety and reliability during operation. Additionally, the winch includes multiple handle interfaces, allowing users to easily switch between two hand-crank speeds for a more effortless operation. The handle is made of full aluminum alloy die-casting, significantly reducing its weight and ensuring simple, convenient, and quick operation.

  1. Dual-mode design: the product adopts both electric and manual modes, users can switch freely according to the needs, improving the flexibility and adaptability of the product.
  2. Braking brake: the product in the continuation of the standard electromagnetic braking brake, but also uses the original front torsion spring brake technology, can be used in the process of safety and reliability, to protect the personal safety of staff.

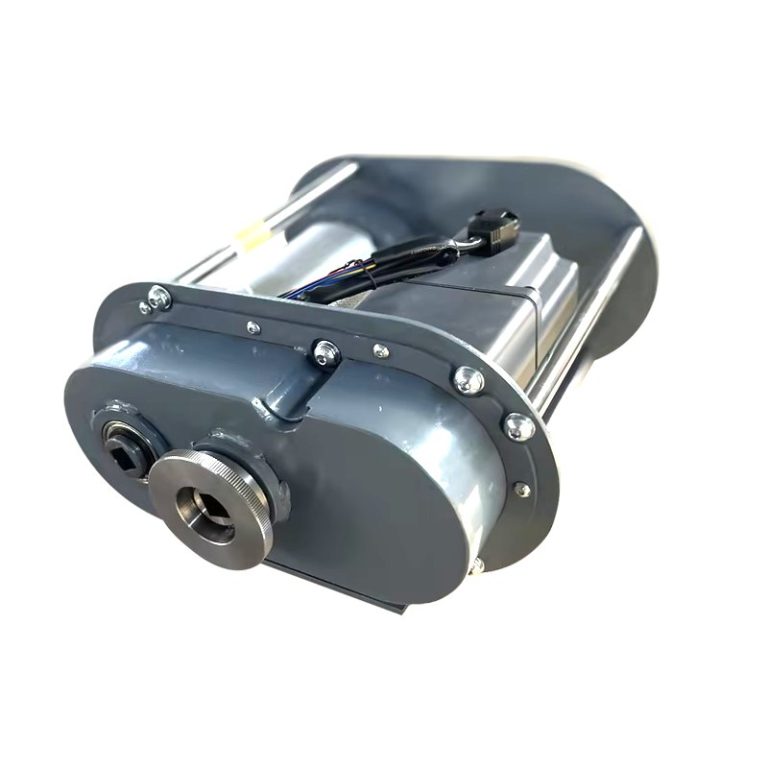

  3. Multi-point handle interface: The product has a multi-point handle interface, which can realize the arbitrary switching of two hand-cranking speeds, making hand-cranking easier and improving the experience of using the product.
  4. All-aluminum alloy die-casting handle: The product adopts all-aluminum alloy die-casting handle, which improves the service life and durability of the product and reduces the cost of maintenance and replacement.
Chat Now

Integrated Manual Electric Dual-Mode Winch

This product is an integrated hand-electric dual-mode winch, featuring both electric and manual modes that users can switch between freely. It combines traditional electromagnetic braking with an innovative front-mounted torsion spring brake system, enhancing safety and reliability during operation. Additionally, the winch includes multiple handle interfaces, allowing users to easily switch between two hand-crank speeds for a more effortless operation. The handle is made of full aluminum alloy die-casting, significantly reducing its weight and ensuring simple, convenient, and quick operation.

  1. Dual-mode design: the product adopts both electric and manual modes, users can switch freely according to the needs, improving the flexibility and adaptability of the product.
  2. Braking brake: the product in the continuation of the standard electromagnetic braking brake, but also uses the original front torsion spring brake technology, can be used in the process of safety and reliability, to protect the personal safety of staff.
  3. Multi-point handle interface: The product has a multi-point handle interface, which can realize the arbitrary switching of two hand-cranking speeds, making hand-cranking easier and improving the experience of using the product.
  4. All-aluminum alloy die-casting handle: The product adopts all-aluminum alloy die-casting handle, which improves the service life and durability of the product and reduces the cost of maintenance and replacement.
Chat Now

Product Details

Model Motor power Reduction gear ratio Reducer output speed Motor reducer

Rated output

Torque

Rope out speed Own weight Reel capacity Rope diameter Lifting weight
100kg 0.2kw 180:1 16rp/min 40N.m 3m/min 24kg 18m 3mm 100kg
200kg 0.2kw 90:1 16rp/min 34N.m 3m/min 25kg 50m 4mm 200kg
500kg 0.7kw 90:1 16.7rp/min 343N.m 5m/min 65kg 50-100m 6mm 500kg
800kg 1.5kw 90:1 16.7rp/min 518N.m 5m/min 75kg 50-100m 6mm 800kg

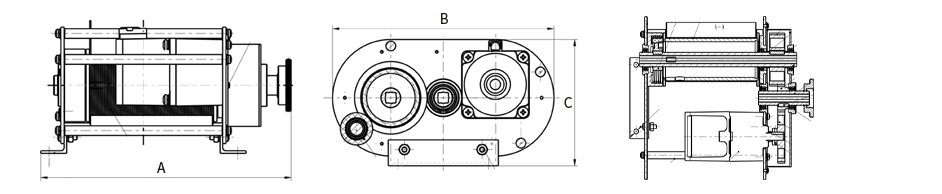

Model A(Length) B(Width) C(Height)
100kg 387mm 342mm 195mm
200kg 489mm 412mm 230mm
500kg 539mm 462mm 280mm
800kg 589mm 512mm 330mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
