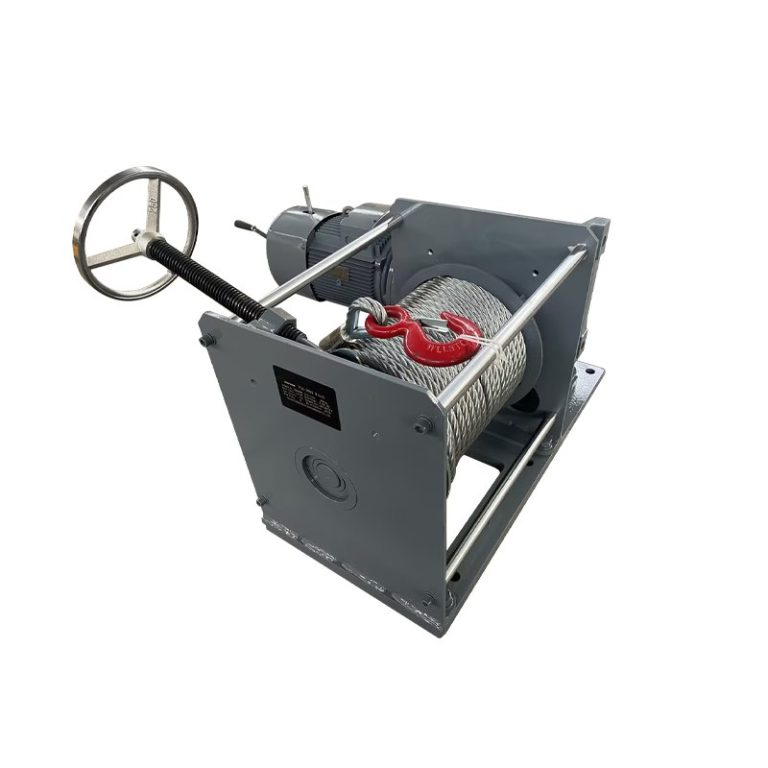

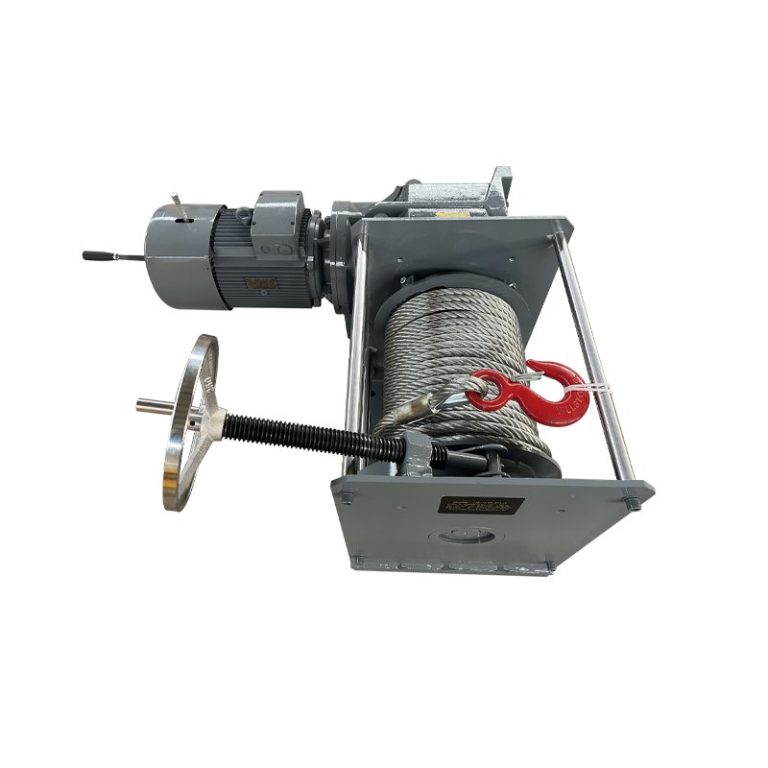

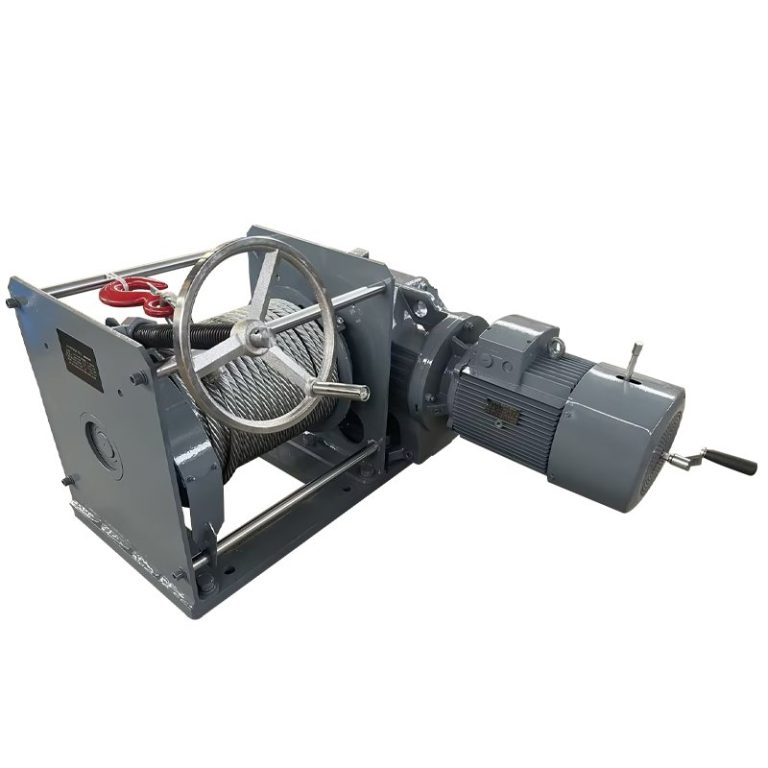

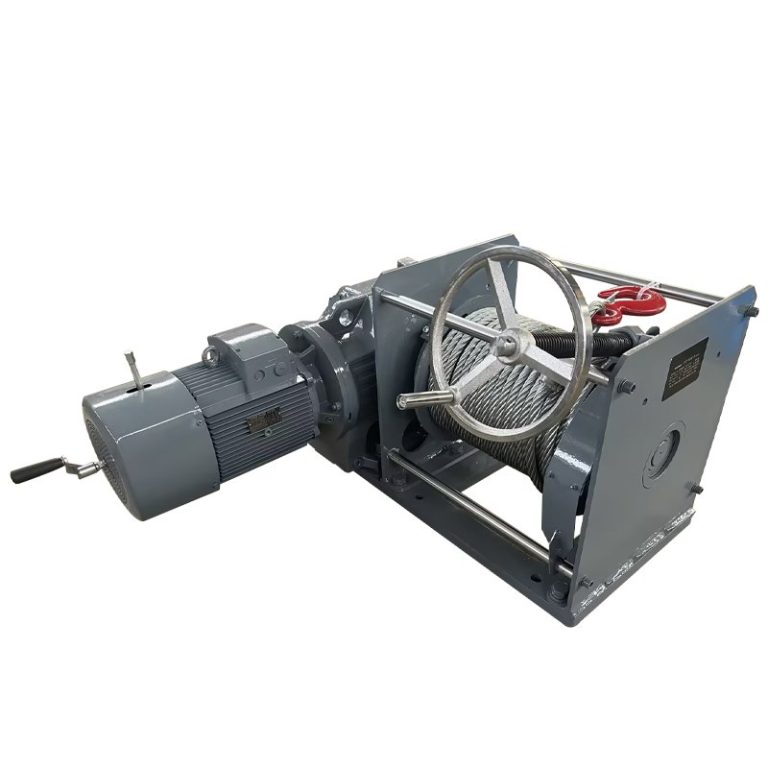

Marine Integrated Hand-Electric Winch

Marine Integrated Hand-Electric Winch

This marine electric winch is equipped with both a manual brake and an electromagnetic motor brake, providing dual braking systems for enhanced safety. It features a hard-tooth surface gearbox and a European-style direct-connect gearbox design, ensuring quiet and efficient performance.

  1. Adjustable motor shaft: The motor’s rear shaft can be manually cranked for precise control over lifting and lowering speeds. This feature offers convenience and flexibility for various operational needs.
  2. Dual braking systems: The winch includes independent manual and electromagnetic motor brakes, ensuring robust safety during use.
  3. Durable hard-tooth gearbox: The hard-tooth surface gearbox is highly durable, with a long service life that reduces maintenance costs.
  4. European-style gearbox design: The direct-connect European-style gearbox design is aesthetically pleasing, space-saving, and enhances the overall performance of the product.
Chat Now

Marine Integrated Hand-Electric Winch

This marine electric winch is equipped with both a manual brake and an electromagnetic motor brake, providing dual braking systems for enhanced safety. It features a hard-tooth surface gearbox and a European-style direct-connect gearbox design, ensuring quiet and efficient performance.

  1. Adjustable motor shaft: The motor’s rear shaft can be manually cranked for precise control over lifting and lowering speeds. This feature offers convenience and flexibility for various operational needs.
  2. Dual braking systems: The winch includes independent manual and electromagnetic motor brakes, ensuring robust safety during use.
  3. Durable hard-tooth gearbox: The hard-tooth surface gearbox is highly durable, with a long service life that reduces maintenance costs.
  4. European-style gearbox design: The direct-connect European-style gearbox design is aesthetically pleasing, space-saving, and enhances the overall performance of the product.
Chat Now

Product Details

Model:3200 KG Motor power:5.5 KW Rope out speed:11m/min Motor reducer Rated output torque:4273N.m
Reduction gear ratio:123.93:1 Reducer Output Speed:12rp/min Lifting weight:3200 kg Winch constant load:410kg
Rope Diameter:18mm Reel capacity:18m Total length of wire rope:20m

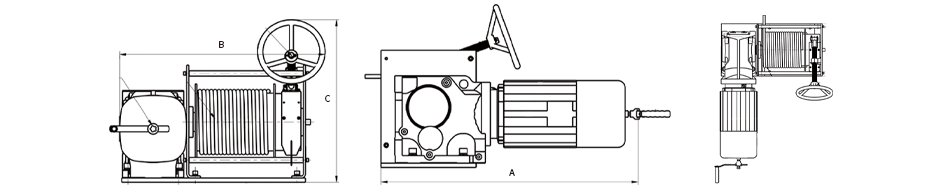

Model:3200 KG A(Length):1217mm B(Width):973mm C(Height):769mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
