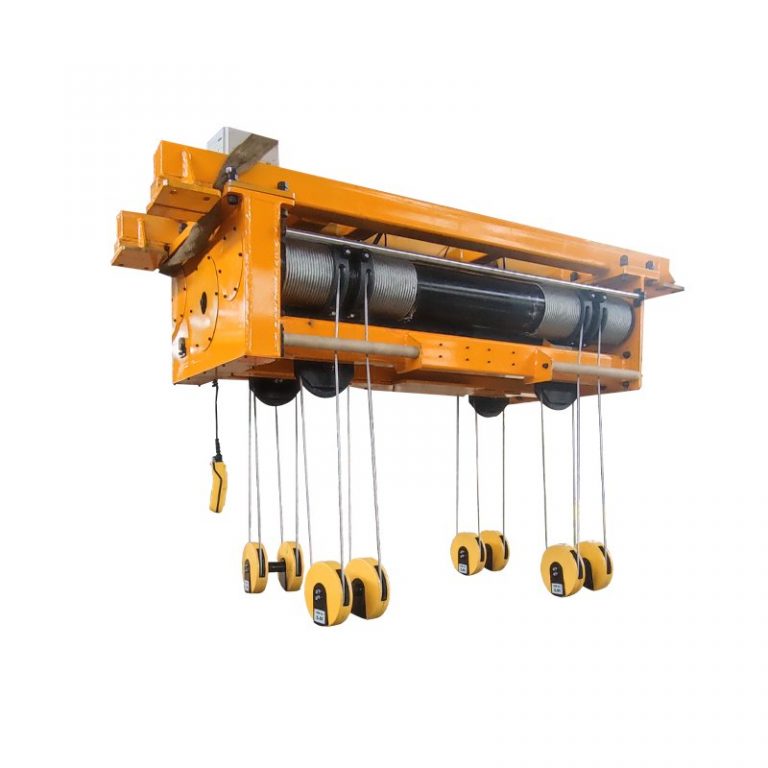

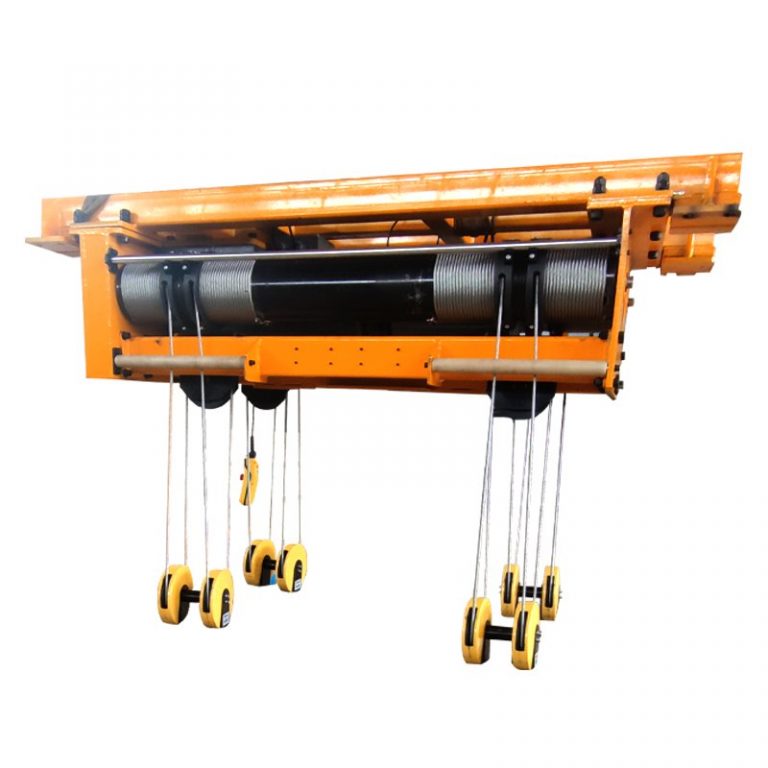

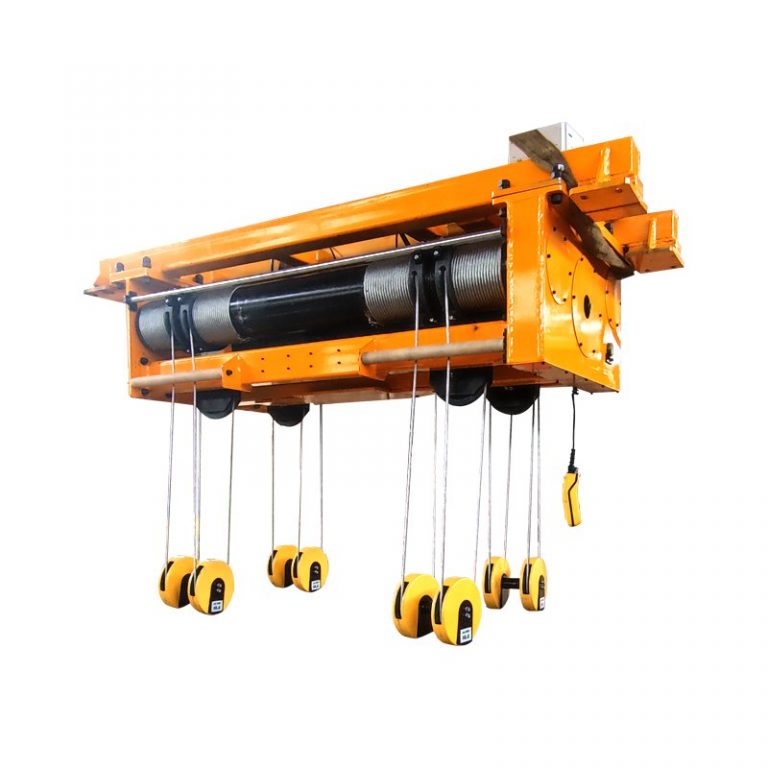

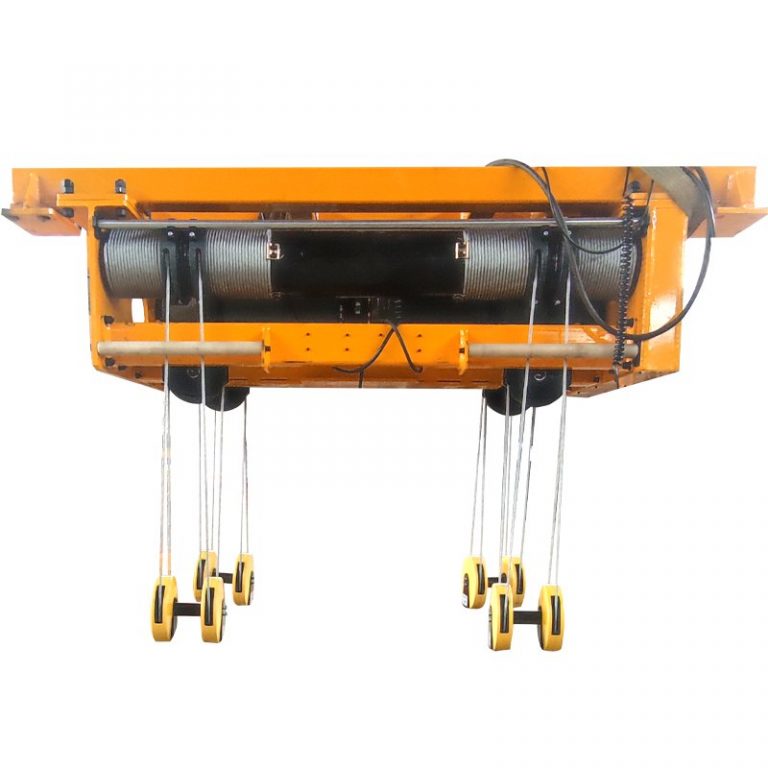

New Energy Intelligent Winch For Battery Swapping Station

This product is a smart battery swap hoist tailored for automatic battery swapping stations for new energy trucks.

Equipped with an electromagnetic brake motor and an internal encoder, programmable for control purposes.
The drum is equipped with rope grooves and rope guides, utilizing a bidirectional four-rope structure to ensure the hook remains stable without swinging.
Equipped with a mechanical height limiter and absolute encoder for dual safety protection.
Each hook is equipped with an independent force sensor, effectively safeguarding the battery’s safety.

New Energy Intelligent Winch For Battery Swapping Station

This product is a smart battery swap hoist tailored for automatic battery swapping stations for new energy trucks.

Equipped with an electromagnetic brake motor and an internal encoder, programmable for control purposes.
The drum is equipped with rope grooves and rope guides, utilizing a bidirectional four-rope structure to ensure the hook remains stable without swinging.
Equipped with a mechanical height limiter and absolute encoder for dual safety protection.
Each hook is equipped with an independent force sensor, effectively safeguarding the battery’s safety.

Product Details

Model：4500 KG	Motor power: 1 kW	Rope payout speed: 11.5 m/s	Rated output torque of the motor reducer: 2580 Nm
Gear reducer transmission ratio: 37.08:1	Gear reducer output speed: 82rp/min	Hoisting weight capacity: 4500 kg	Weight of the hoist itself: 1100 kg
Wire rope diameter: 8 mm	Drum rope capacity: 7 m

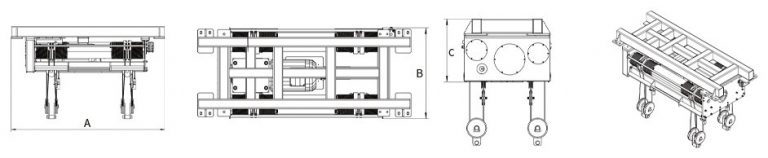

Model：4500 KG

A（Length）：2136mm

B（Width）：913mm

C（Height）：642mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
