Parallel Electric Industrial Winch

Parallel Electric Industrial Winch

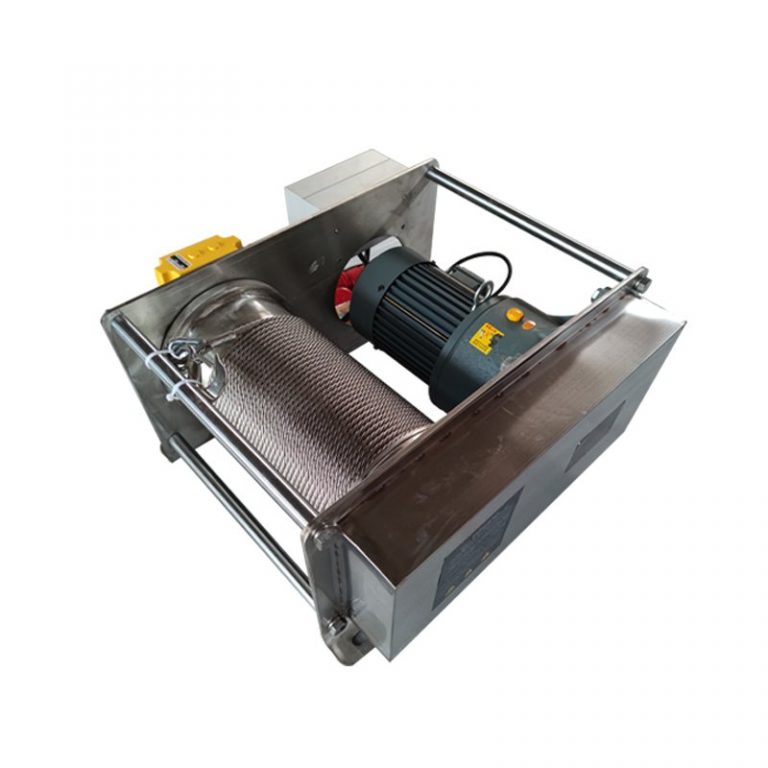

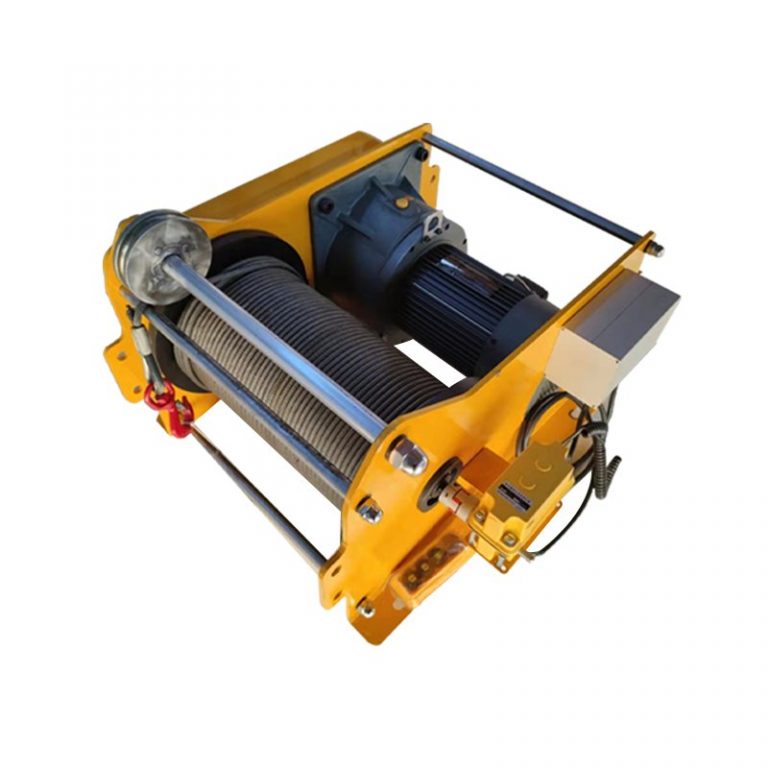

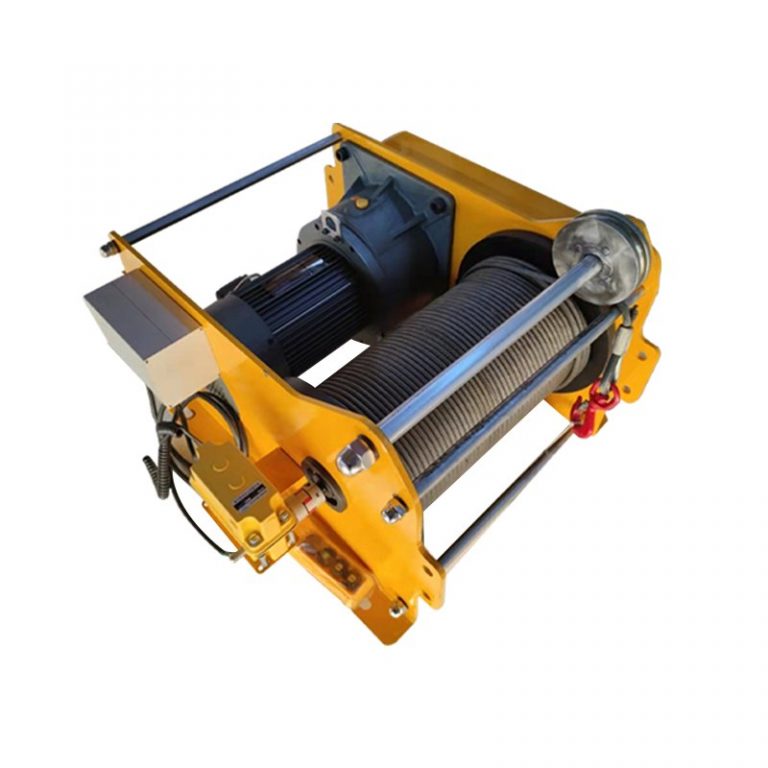

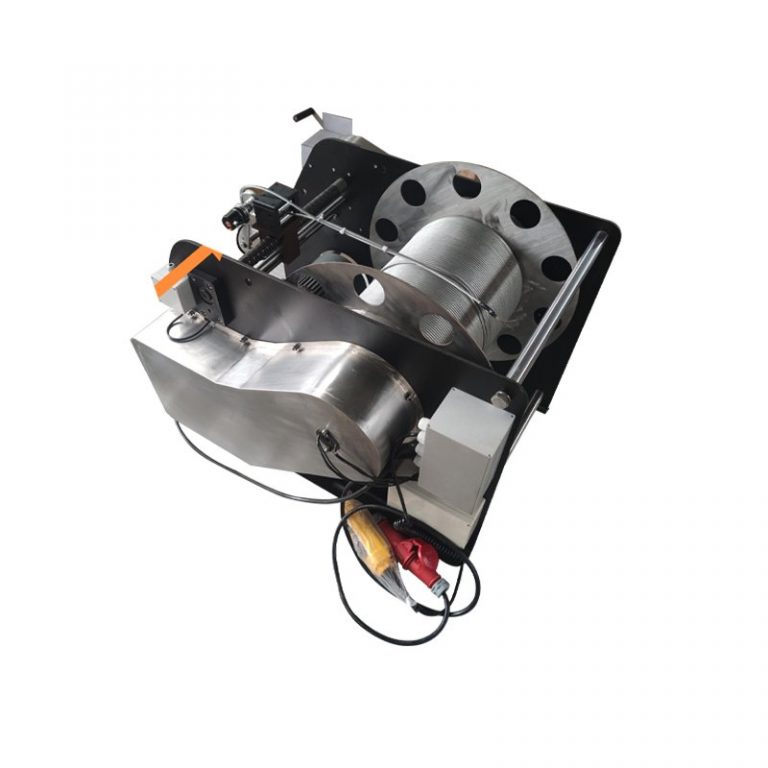

This parallel electric industrial hoist is a fully functional, stable performance, and reliable hoisting equipment, suitable for various lifting and pulling operations in work environments.

  1. This parallel electric industrial hoist utilizes a small-sized steel gear reduction motor, which maintains high transmission efficiency during continuous long-term operation. It boasts extremely high transmission efficiency and operates quietly and smoothly during use.
  2. It features a large lifting height, with a maximum lifting height of up to 500 meters. It can optionally be equipped with an automatic rope arrangement device, ensuring orderly arrangement of the steel wire rope.
  3. Equipped with an electromagnetic brake, ensuring timely braking response and reliable safety.
  4. Standard with an adjustable mechanical limit switch, allowing for flexible setting of stop positions.
  5. The wired handheld controller is equipped with a spring cable and strong magnetic buckle, making it convenient for operators to use and store.
Chat Now

Parallel Electric Industrial Winch

This parallel electric industrial hoist is a fully functional, stable performance, and reliable hoisting equipment, suitable for various lifting and pulling operations in work environments.

  1. This parallel electric industrial hoist utilizes a small-sized steel gear reduction motor, which maintains high transmission efficiency during continuous long-term operation. It boasts extremely high transmission efficiency and operates quietly and smoothly during use.
  2. It features a large lifting height, with a maximum lifting height of up to 500 meters. It can optionally be equipped with an automatic rope arrangement device, ensuring orderly arrangement of the steel wire rope.
  3. Equipped with an electromagnetic brake, ensuring timely braking response and reliable safety.
  4. Standard with an adjustable mechanical limit switch, allowing for flexible setting of stop positions.
  5. The wired handheld controller is equipped with a spring cable and strong magnetic buckle, making it convenient for operators to use and store.
Chat Now

Product Details



Model The first layer load capacity First layer lifting speed Average rope speed Steel rope diameter Rope length Rope capacity Operating class Motor power Weight
500kg 500kg 5.7m/min 6.8m/min 6mm 14m 50m M4 0.75kw 60kg
1000kg 1000kg 5.7m/min 6.8m/min 10mm 16m 50m M4 1.5kw 140kg
2000kg 2000kg 5m/min 6.m/min 12mm 20m 50m M4 2.2kw 220kg
6000kg 6000kg 5.4m/min 3m/min 22mm 24m 50m M4 7.5kw 380kg

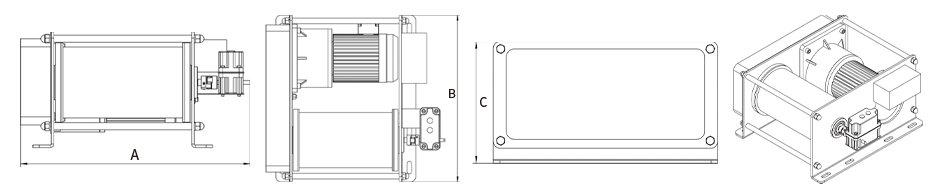

Model A(Length) B(Width) C(Height)
500kg 630mm 500mm 300mm
1000kg 710mm 660mm 358mm
2000kg 800mm 600mm 400mm
6000kg 955mm 935mm 620mm



The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
