Rapid Friction Winch

Rapid Friction Winch

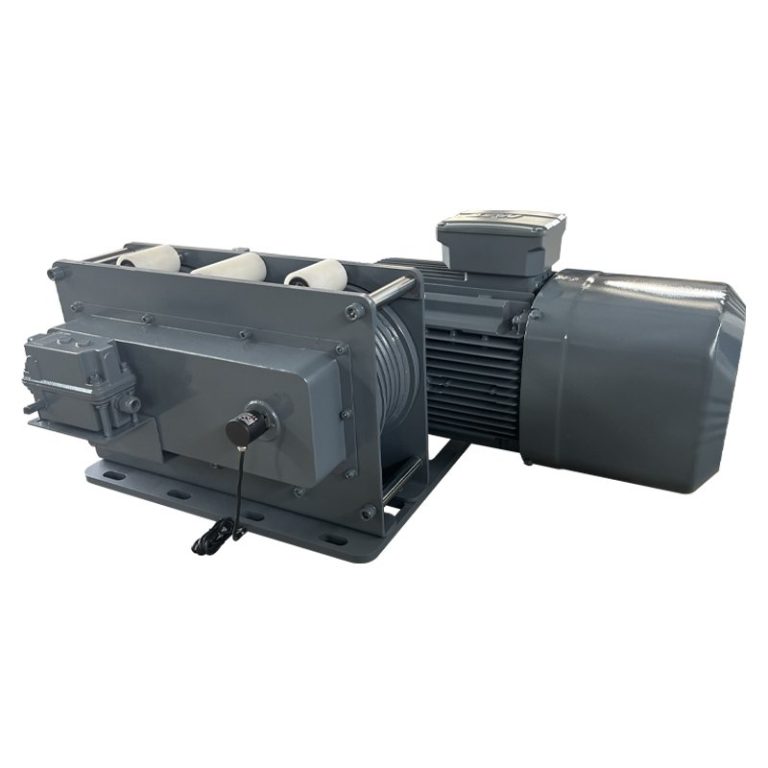

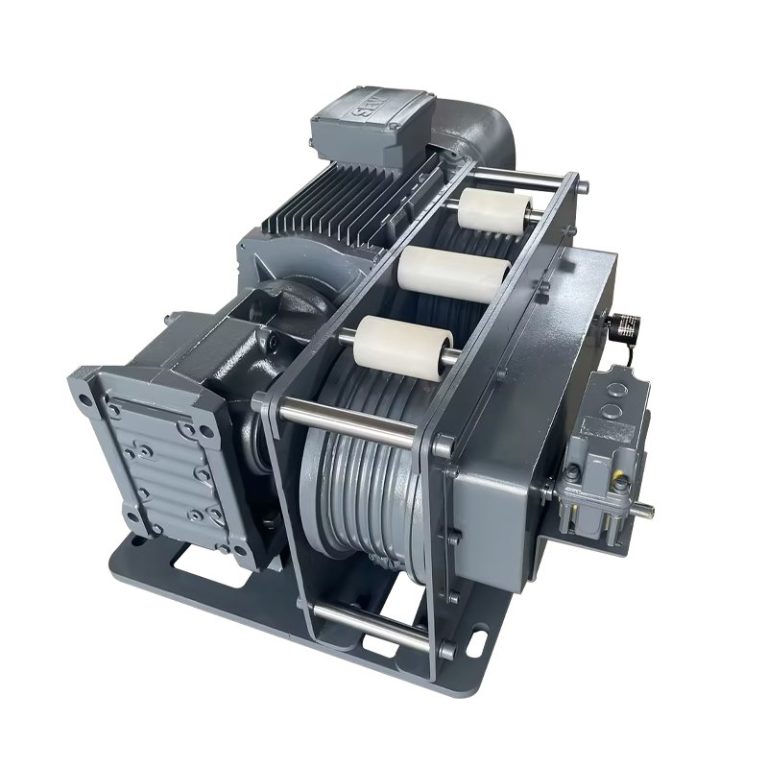

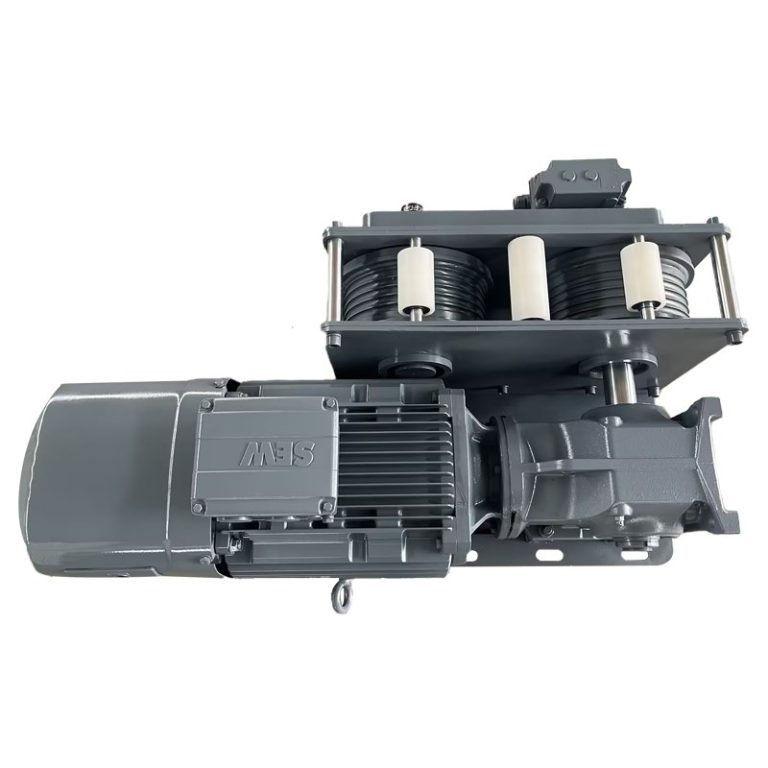

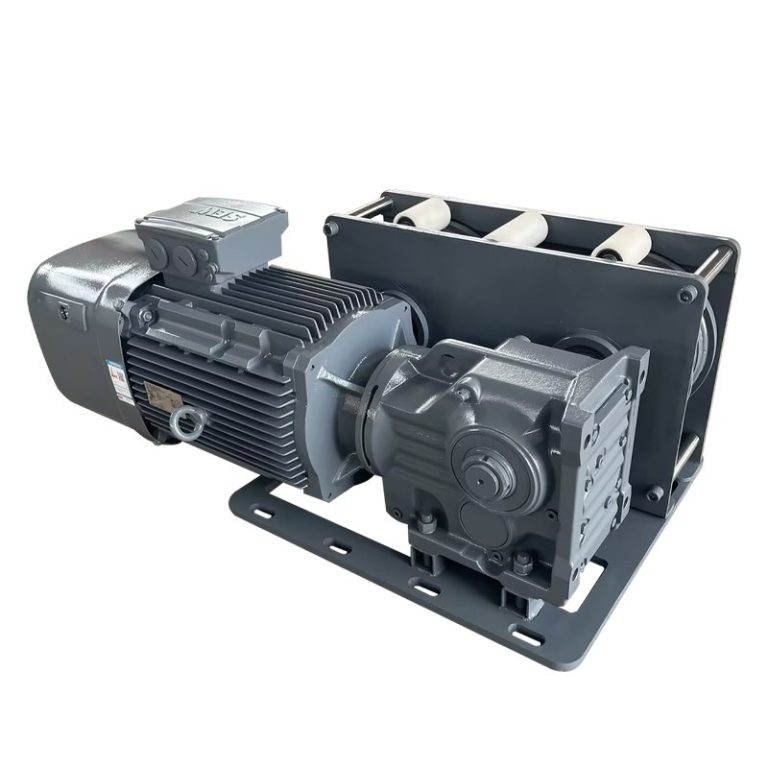

Friction winch, also known as reciprocating friction winch, round-trip winches, or bi-directional cycling winches, is a type of equipment used in various reciprocating motion traction scenarios.

  1. Fast speed: 60m/min, it can effectively improve the working efficiency.
  2. Equipped with SEW geared motor: SEW is a well-known brand of industrial motors with good stability and durability.
  3. Multi-rope groove design: Improves the life of the rope and reduces the wear and tear of the rope.
  4. Equipped with position encoder: It can accurately control the lifting position and improve the operation precision.
  5. Equipped with mechanical limiters: It can effectively protect the safety of equipment and staff.
  6. Equipped with frequency conversion speed control system: It can adjust the lifting speed according to the actual demand, to meet the needs of different working scenes.
Chat Now

Rapid Friction Winch

Friction winch, also known as reciprocating friction winch, round-trip winches, or bi-directional cycling winches, is a type of equipment used in various reciprocating motion traction scenarios.

  1. Fast speed: 60m/min, it can effectively improve the working efficiency.
  2. Equipped with SEW geared motor: SEW is a well-known brand of industrial motors with good stability and durability.
  3. Multi-rope groove design: Improves the life of the rope and reduces the wear and tear of the rope.
  4. Equipped with position encoder: It can accurately control the lifting position and improve the operation precision.
  5. Equipped with mechanical limiters: It can effectively protect the safety of equipment and staff.
  6. Equipped with frequency conversion speed control system: It can adjust the lifting speed according to the actual demand, to meet the needs of different working scenes.
Chat Now

Product Details

Model:1000KG Motor power:11KW Rated Tensile Force:1000KG Rope Diameter:11mm Reel speed:80.58rpm Average rope speed:60m/min

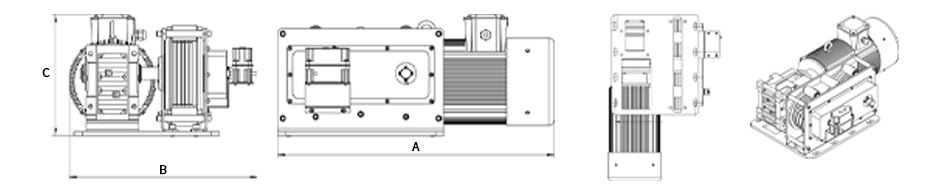

Model:1000KG A(Length)1049mm B(Width)716mm C(Height)560mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
