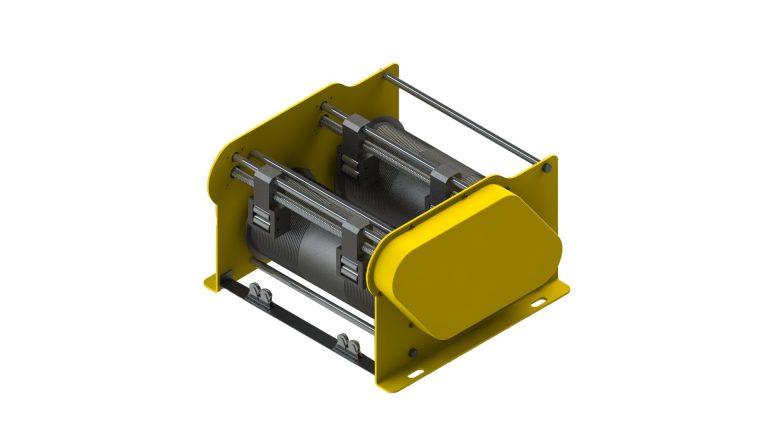

This hoist is designed as a solution for synchronized lifting with four ropes and fixed payout requirements. The entire machine is constructed using lightweight aluminum alloy profiles, ensuring a compact structure and an aesthetically pleasing appearance.

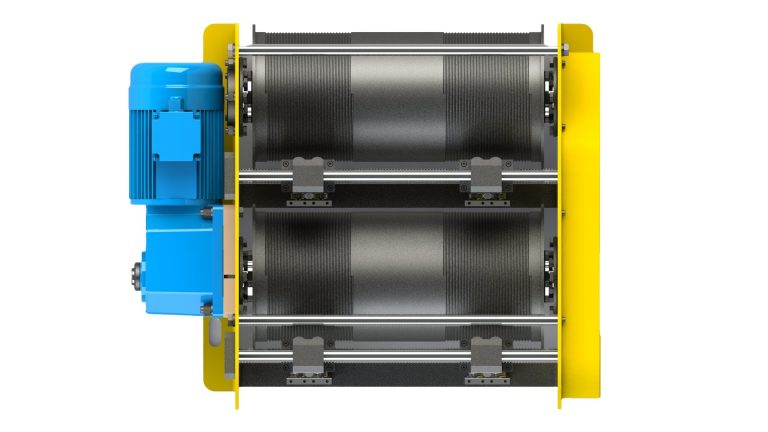

1.This hoist employs a parallel-four-rope design where one reduction motor drives two drums to rotate synchronously. It features synchronized lifting with four ropes, ensuring excellent stability and reliable safety.

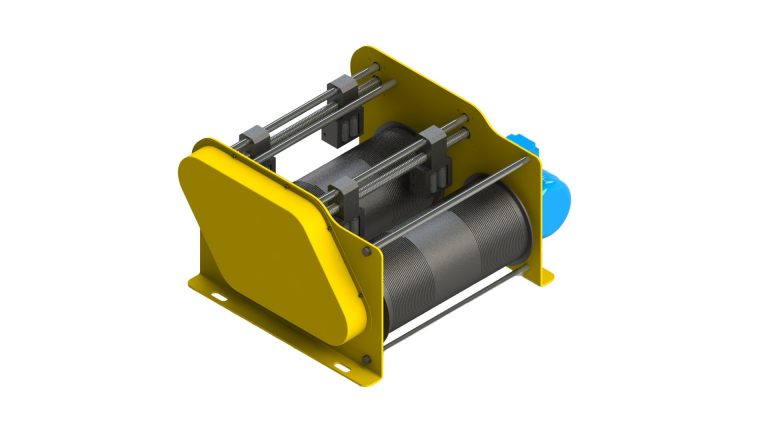

2.The payout position utilizes a unidirectional screw rod rope guiding device, ensuring accuracy and stability in the payout location.

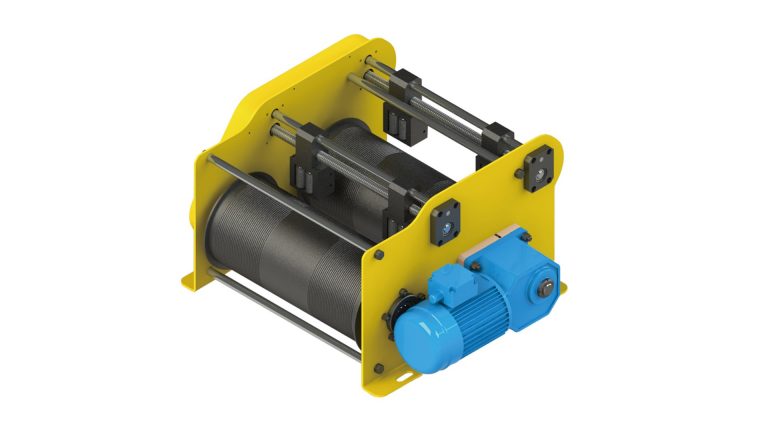

3.This hoist is driven by a fully aluminum-bodied orthogonal shaft and features an electromagnetic brake reduction motor, providing advantages such as quiet operation, high efficiency, and the ability to work continuously for long periods.
