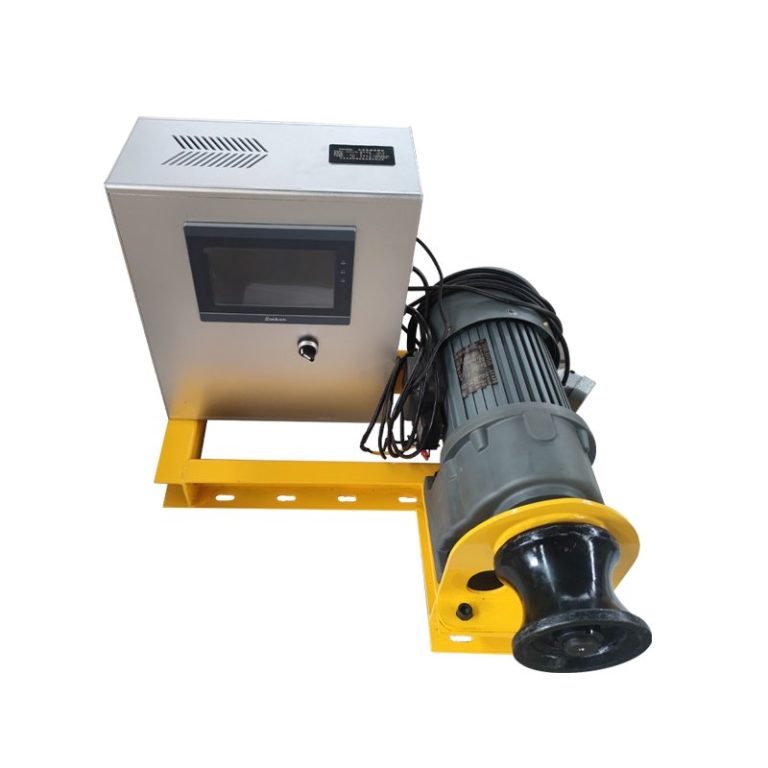

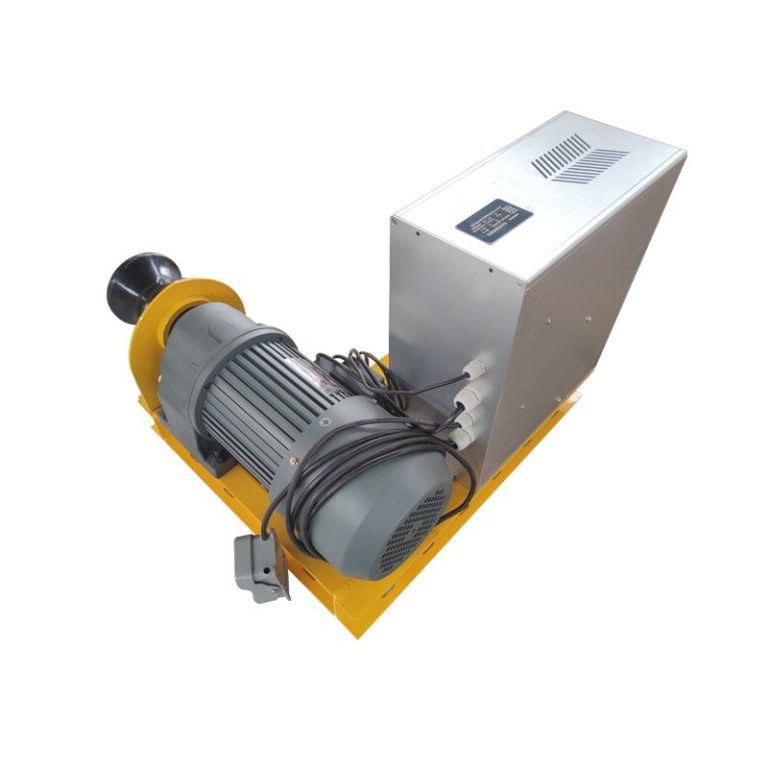

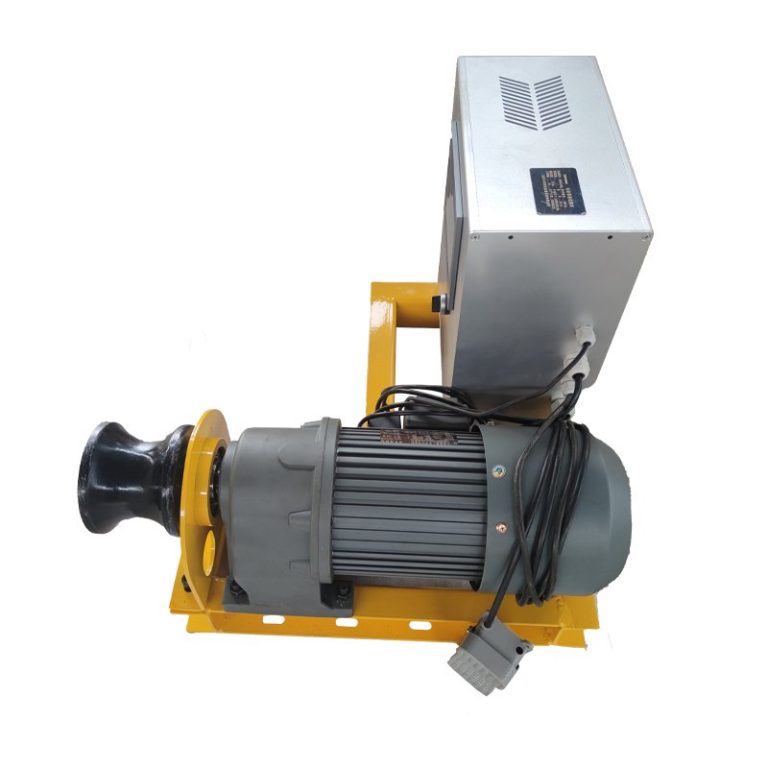

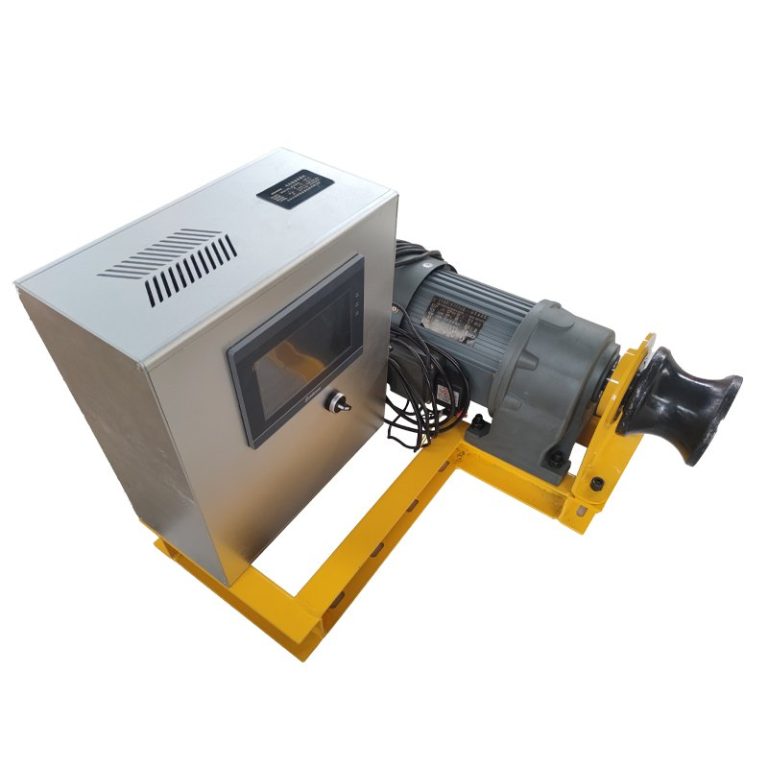

Electric Cable Winch

The electric cable winch is a high-performance, intelligent, safe and reliable product for use as a power unit when laying large cables.

Dual control modes: Features both PLC automatic control and foot pedal switch control, providing convenient and safe operation.
High quality and intelligent features: Known for its high quality, intelligent capabilities, versatility, and ease of maintenance, it is widely used in industries such as power, oil, chemicals, and aviation.
Customizable specifications: Power capacities can be customized from 500 kg to 5000 kg, and the rope payout speed can also be tailored to meet customer requirements.

Chat Now

Electric Cable Winch

The electric cable winch is a high-performance, intelligent, safe and reliable product for use as a power unit when laying large cables.

Dual control modes: Features both PLC automatic control and foot pedal switch control, providing convenient and safe operation.
High quality and intelligent features: Known for its high quality, intelligent capabilities, versatility, and ease of maintenance, it is widely used in industries such as power, oil, chemicals, and aviation.
Customizable specifications: Power capacities can be customized from 500 kg to 5000 kg, and the rope payout speed can also be tailored to meet customer requirements.

Chat Now

Product Details

Model：1500KG	Motor power：1.5KW	Rated tension：1500KG	Rope Diameter：8mm	Reel speed：46.67rpm	Average rope speed：14.37m/min
reduction ratio：30:1	Own weight：65kg

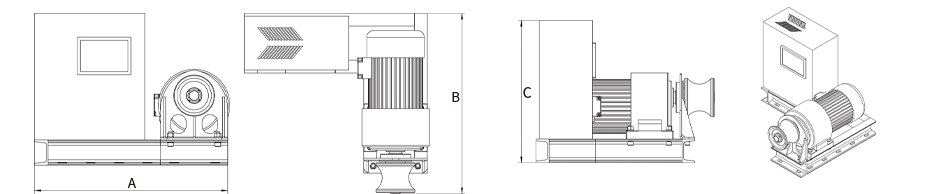

Model：1500KG

A（Length）613mm

B（Width）604mm

C（Height）480mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
