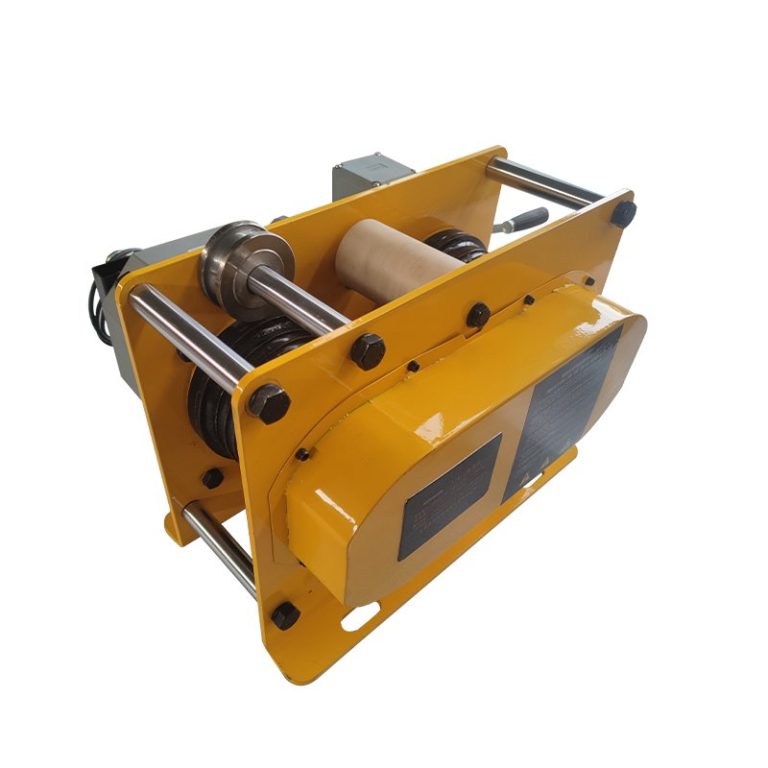

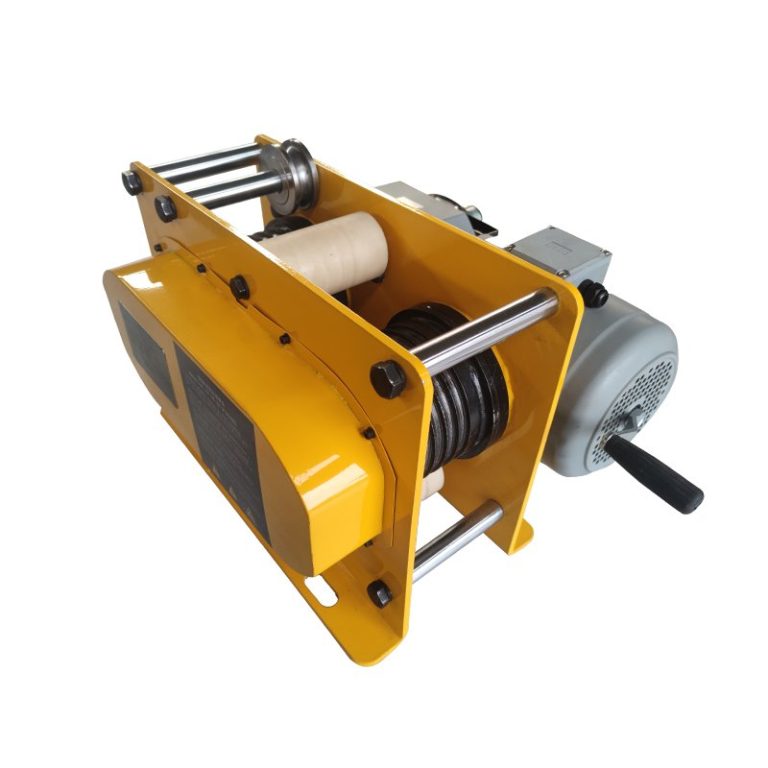

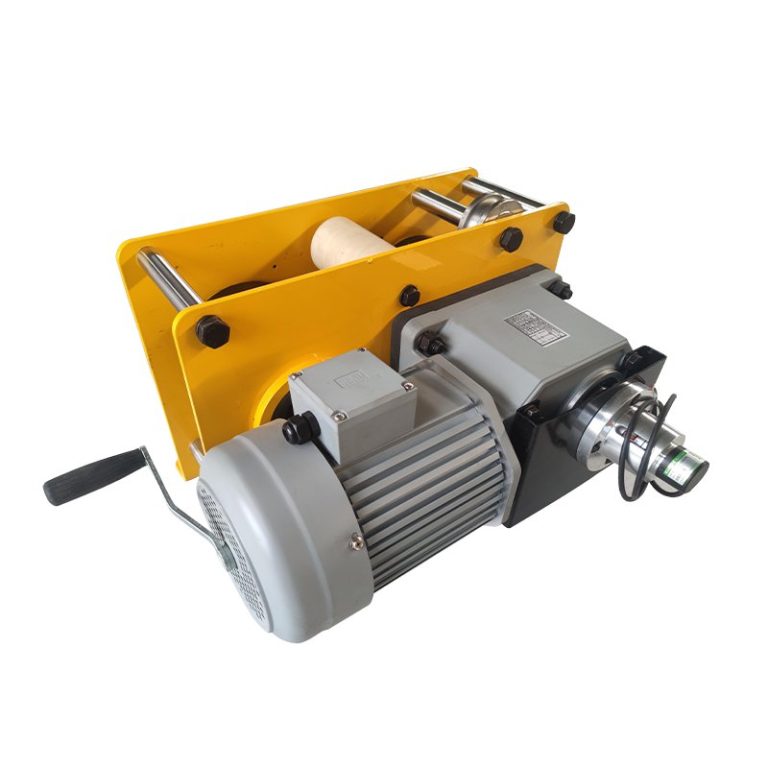

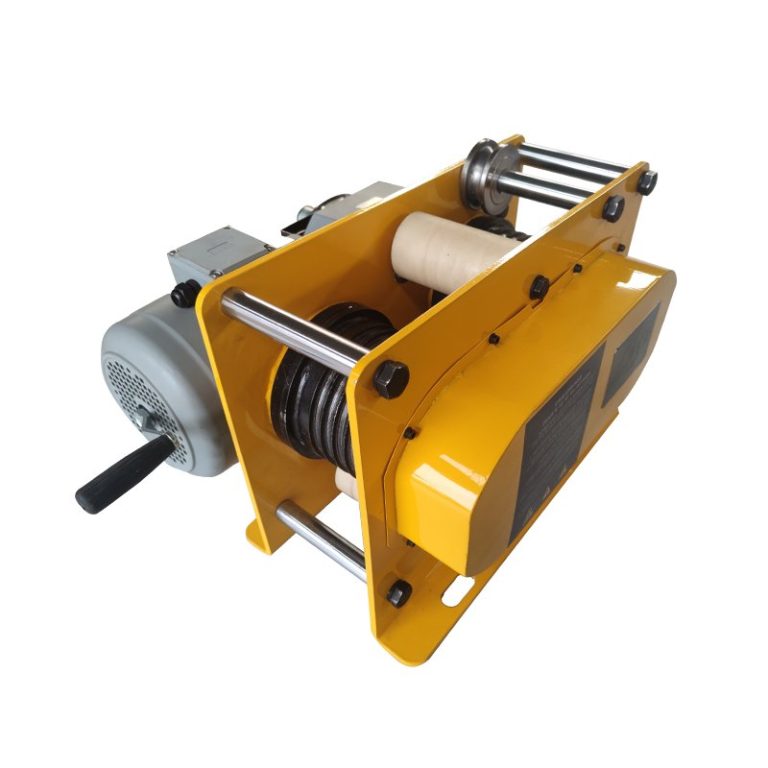

This friction winch uses a right-angle shaft motor drive, which offers high transmission efficiency, allowing the rail car to easily perform reciprocating operations.
This friction winch uses a right-angle shaft motor drive, which offers high transmission efficiency, allowing the rail car to easily perform reciprocating operations.
| Model | Rated Tensile Force | Motor power | Reel speed | Rope Diameter | Average rope speed |
| 1000KG | 1000KG | 1.5kw | 9rpm | 12mm | 4.58m/min |
| 1500KG | 1500KG | 1.5kw | 9rpm | 12mm | 4.58m/min |

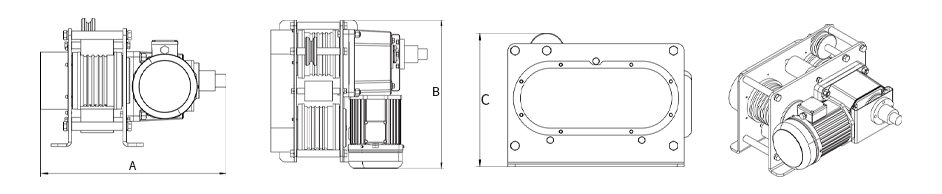

| Model | A（Length） | B（Width） | C（Height） |
| 1000KG | 551mm | 523mm | 380mm |
| 1500KG | 551mm | 523mm | 380mm |
The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
