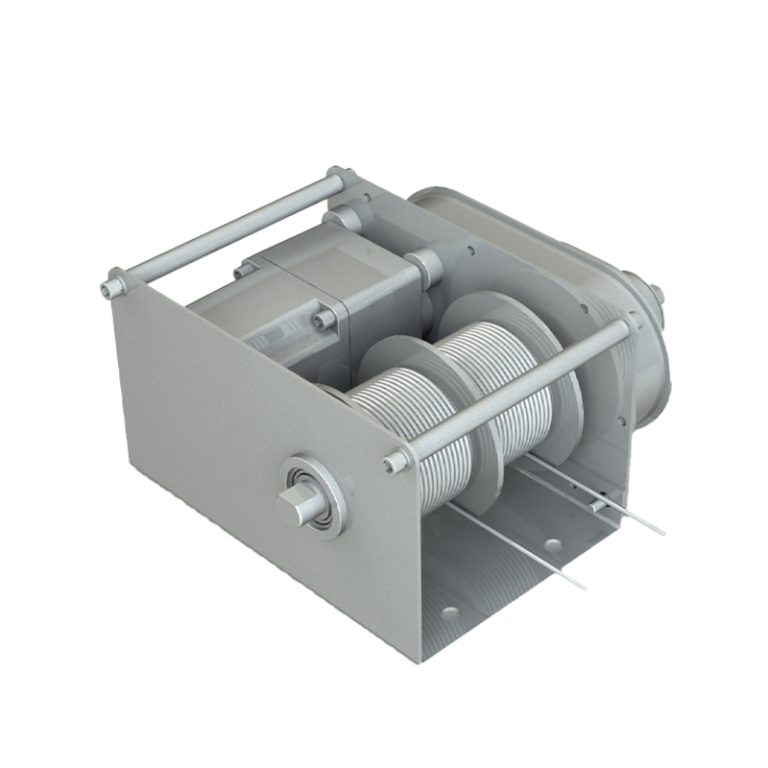

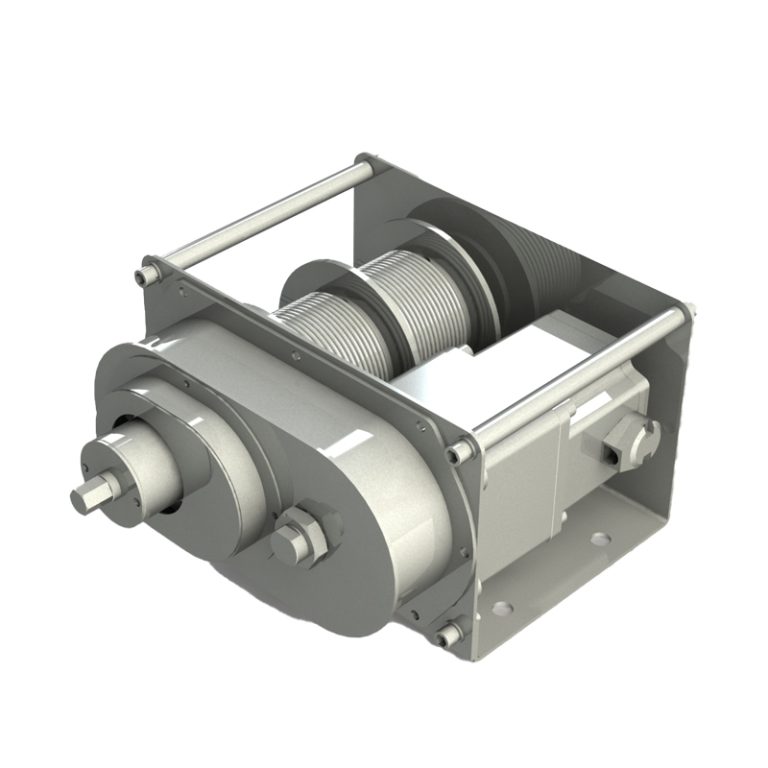

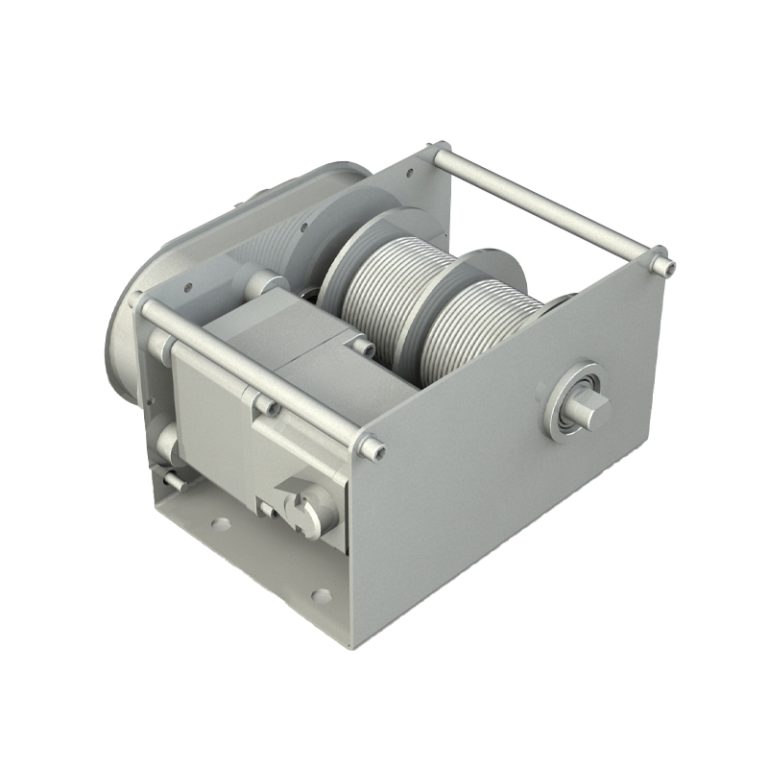

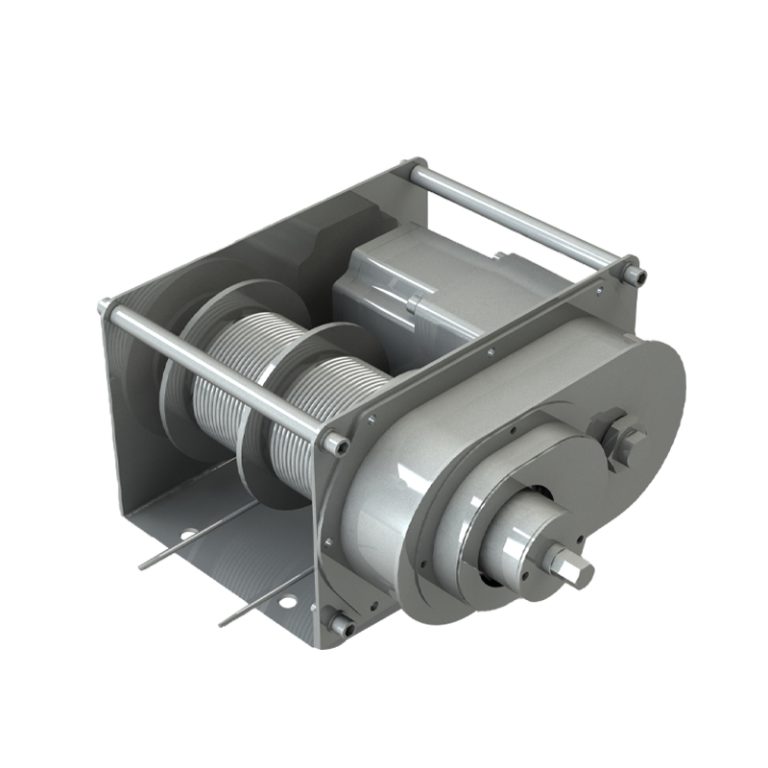

Integrated Manual Electric Dual-Mode Winch

Integrated Manual Electric Dual-Mode Winch

This product is a hand electric dual-mode winch, featuring both electric and manual modes for flexible switching by the user. while maintaining the traditional electromagnetic brake, the winch also incorporates a unique ratchet friction plate design, enhancing safety and reliability during use. additionally, the product is equipped with multiple handle interface points, allowing for seamless switching between two hand-cranking speeds for easier operation. the handle is made from high-quality stamped steel, increasing its durability and providing simple, fast, and convenient operation.

  1. Dual-mode design: The product features both electric and manual modes, allowing users to switch between them as needed, enhancing the flexibility and adaptability of the product.
  2. Braking system: In addition to the standard electromagnetic brake, the product also features a unique ratchet friction plate, ensuring safe and reliable operation during use, thereby protecting the safety of the operators.
  3. Multi-position handle interface: The product is equipped with a multi-position handle interface, allowing users to switch between two hand-cranking speeds for easier operation, thus enhancing the overall user experience.
  4. High-quality stamped steel handle: The handle is made from high-quality stamped steel, which improves the product’s lifespan and durability, reducing maintenance and replacement costs.
Chat Now

Integrated Manual Electric Dual-Mode Winch

This product is a hand electric dual-mode winch, featuring both electric and manual modes for flexible switching by the user. while maintaining the traditional electromagnetic brake, the winch also incorporates a unique ratchet friction plate design, enhancing safety and reliability during use. additionally, the product is equipped with multiple handle interface points, allowing for seamless switching between two hand-cranking speeds for easier operation. the handle is made from high-quality stamped steel, increasing its durability and providing simple, fast, and convenient operation.

  1. Dual-mode design: The product features both electric and manual modes, allowing users to switch between them as needed, enhancing the flexibility and adaptability of the product.
  2. Braking system: In addition to the standard electromagnetic brake, the product also features a unique ratchet friction plate, ensuring safe and reliable operation during use, thereby protecting the safety of the operators.
  3. Multi-position handle interface: The product is equipped with a multi-position handle interface, allowing users to switch between two hand-cranking speeds for easier operation, thus enhancing the overall user experience.
  4. High-quality stamped steel handle: The handle is made from high-quality stamped steel, which improves the product’s lifespan and durability, reducing maintenance and replacement costs.
Chat Now

Product Details

Model Motor power Reduction gear ratio Reducer output speed Motor reducer

Rated output

Torque

Rope out speed Own weight Reel capacity Rope diameter Lifting weight
200kg 0.2kw 90:1 16rp/min 34N.m 3m/min 25kg 50m 4mm 200kg
500kg 0.7kw 90:1 16.7rp/min 343N.m 5m/min 65kg 50-100m 6mm 500kg
800kg 1.5kw 90:1 16.7rp/min 518N.m 5m/min 75kg 50-100m 6mm 800kg

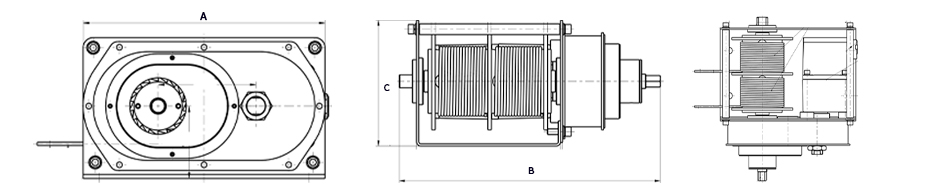

Model A(Length) B(Width) C(Height)
200kg 489mm 412mm 230mm
500kg 539mm 462mm 280mm
800kg 589mm 512mm 330mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
