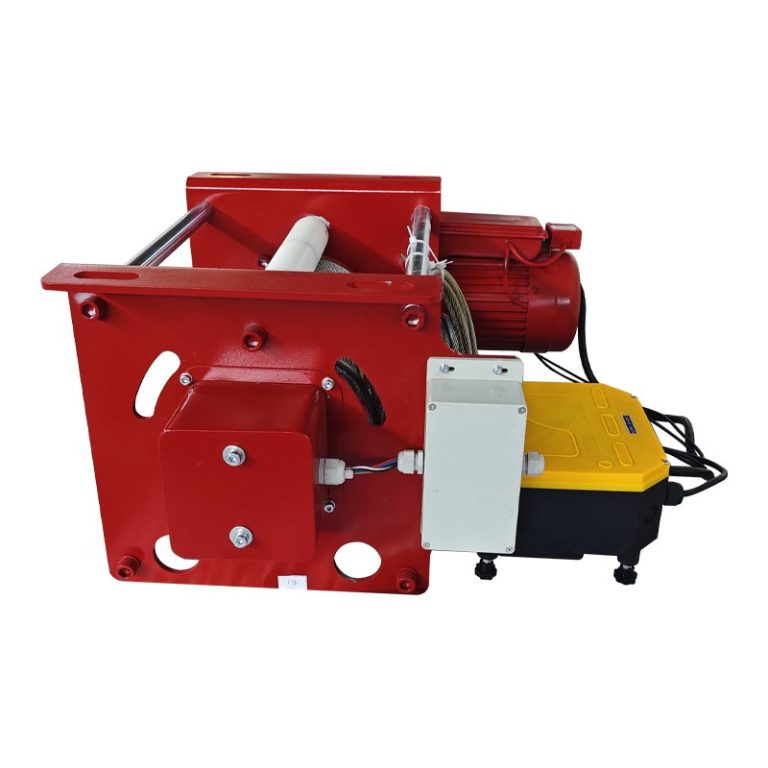

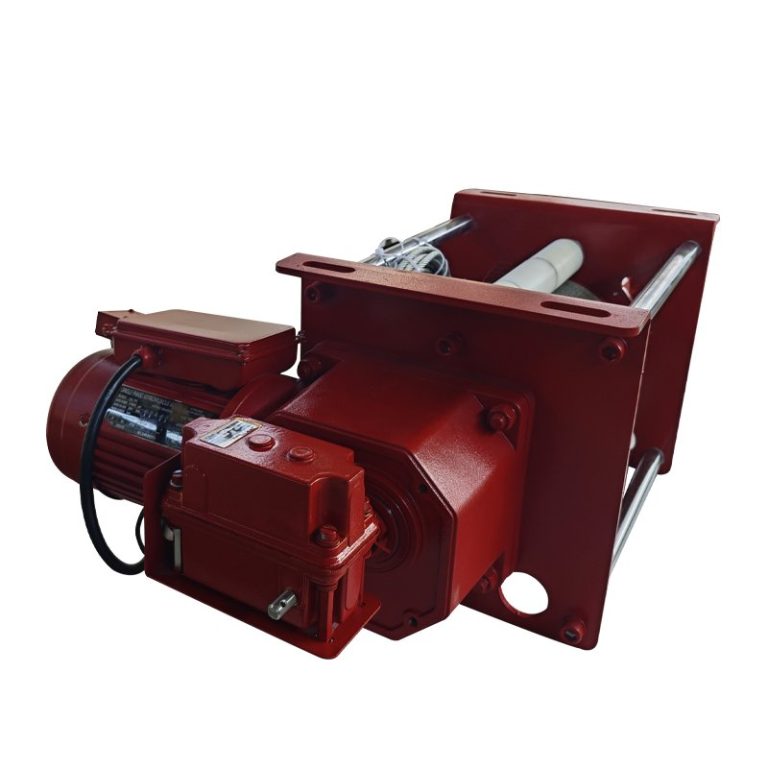

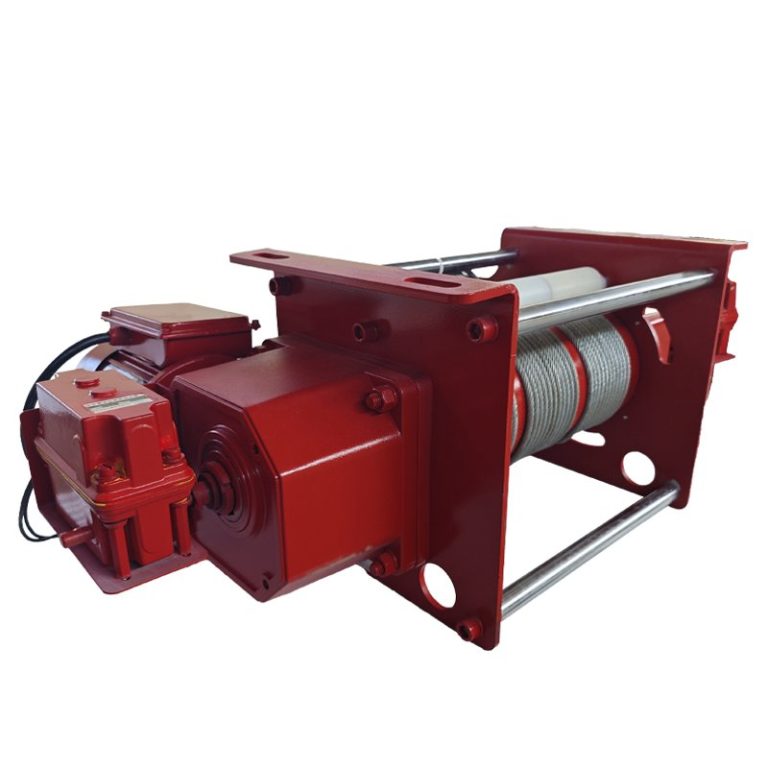

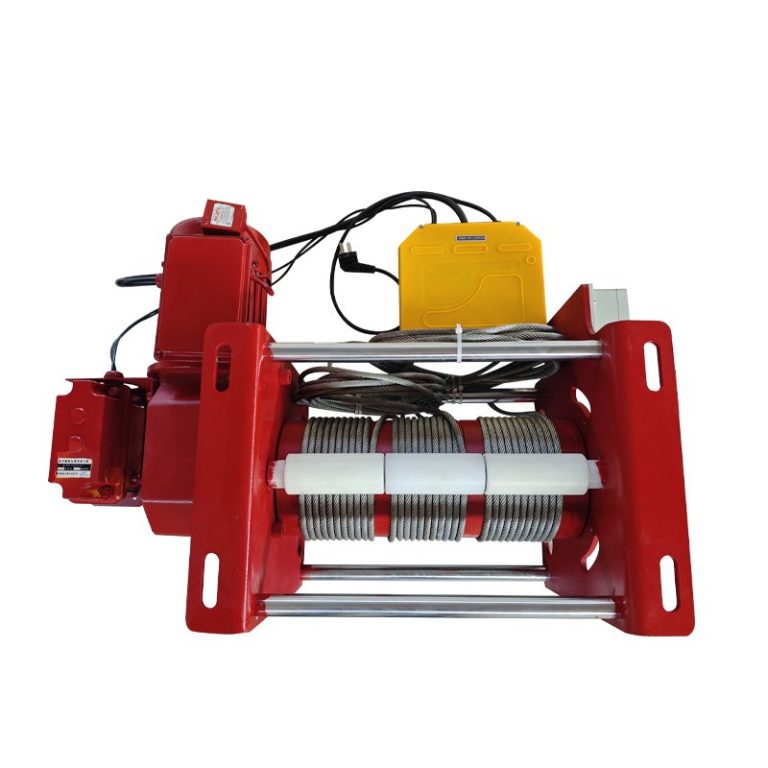

Portable Cable Integrated Machine

Portable Cable Integrated Machine

This is portable cable integrated machine for 400 kg artistic pendant light, which uses suspended steel wire rope cables to achieve simultaneous power supply during the lifting process.

  1. Using suspended steel wire rope cables to achieve simultaneous power supply during the lifting process, which is convenient and practical.
  2. The drum is equipped with a rope groove and a steel wire rope pressure roller to ensure no jumping, making it safer and more reliable, and improving work efficiency.
  3. Equipped with a turbine type mechanical limiter, it can set the position at four points to achieve precise position control function.
  4. Adopting galvanized anti rotation steel wire rope, it is beautiful, safe, exquisite and durable.
  5. Customizable to three-rope synchronous or four-rope synchronous hoist types, offering flexibility in customization to suit different scene requirements.
Chat Now

Portable Cable Integrated Machine

This is portable cable integrated machine for 400 kg artistic pendant light, which uses suspended steel wire rope cables to achieve simultaneous power supply during the lifting process.

  1. Using suspended steel wire rope cables to achieve simultaneous power supply during the lifting process, which is convenient and practical.
  2. The drum is equipped with a rope groove and a steel wire rope pressure roller to ensure no jumping, making it safer and more reliable, and improving work efficiency.
  3. Equipped with a turbine type mechanical limiter, it can set the position at four points to achieve precise position control function.
  4. Adopting galvanized anti rotation steel wire rope, it is beautiful, safe, exquisite and durable.
  5. Customizable to three-rope synchronous or four-rope synchronous hoist types, offering flexibility in customization to suit different scene requirements.
Chat Now

Product Details

Model: 400 KG Motor power: 0.75KW Rated tensile strength 400 kg: Rope diameter: 8mm Rope capacity: 4m Roll speed: 8.8rpm
Average rope speed: 4.2m/min

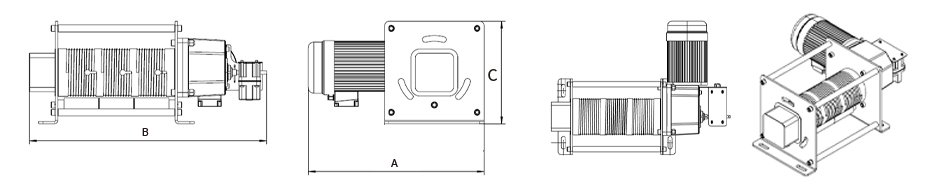

Model: 400 KG A(Length):617mm B(Width): 830mm C(Height):360mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
