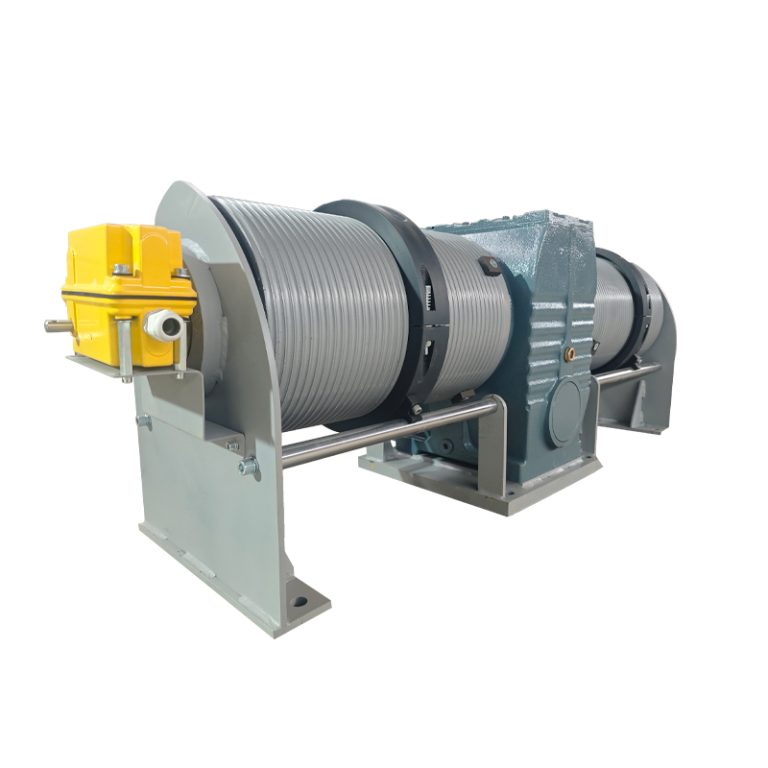

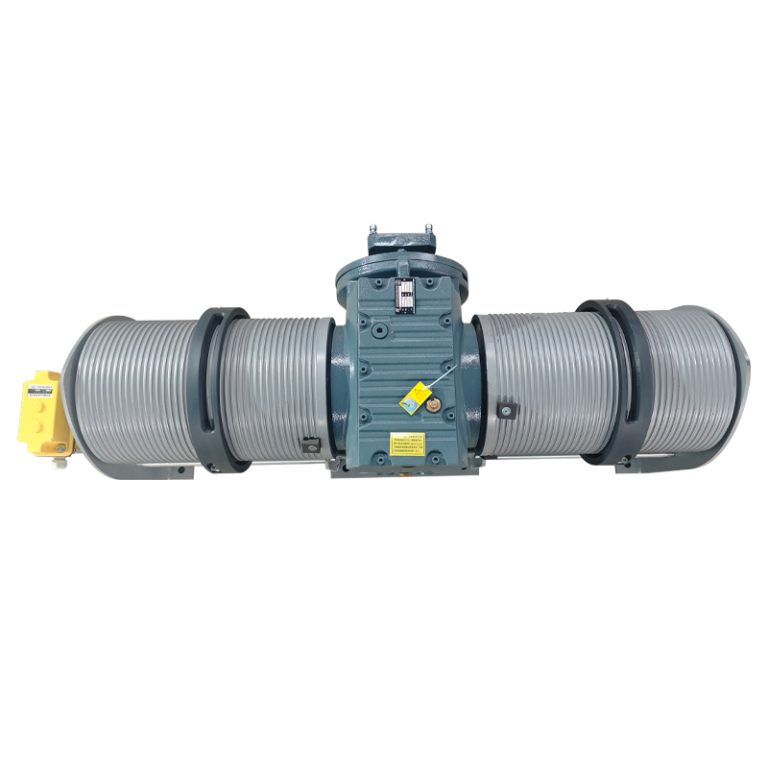

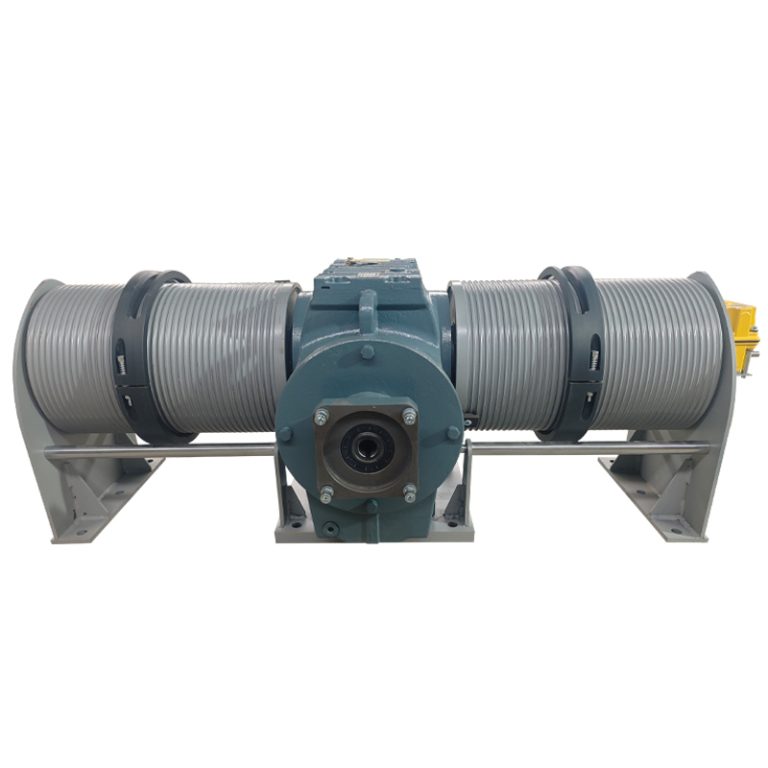

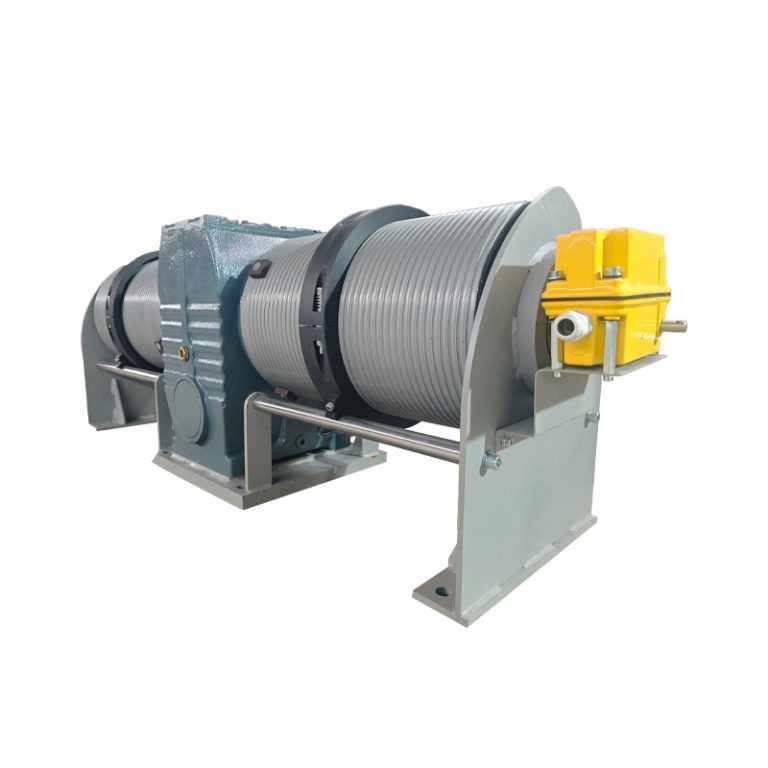

Servo Double Drum Electric Winch

The servo double drum electric winch is an industrial winching device driven by advanced servo motors, featuring high efficiency and precise control.

The equipment supports integration into a PLC system for automated control, making it suitable for various high-demand industrial applications. It provides reliable solutions for customers, improving operational efficiency and reducing maintenance costs.

PLC system control supports the flexible configuration of multiple operating modes, enhancing operational flexibility and precision.
Grooved drum with rope guide the grooved drum design combined with the rope guide ensures the orderly arrangement of the rope, preventing misalignment and tangling.
K series hardened gear reducer it features smooth operation and low noise, providing enhanced durability and reliability.
Mechanical height limiter the upper and lower limits can be flexibly set according to requirements, effectively controlling the working range of the winch, thereby reducing the risk of accidents.

Chat Now

Servo Double Drum Electric Winch

The servo double drum electric winch is an industrial winching device driven by advanced servo motors, featuring high efficiency and precise control.

PLC system control supports the flexible configuration of multiple operating modes, enhancing operational flexibility and precision.
Grooved drum with rope guide the grooved drum design combined with the rope guide ensures the orderly arrangement of the rope, preventing misalignment and tangling.
K series hardened gear reducer it features smooth operation and low noise, providing enhanced durability and reliability.
Mechanical height limiter the upper and lower limits can be flexibly set according to requirements, effectively controlling the working range of the winch, thereby reducing the risk of accidents.

Chat Now

Product Details

Model：2000 KG

Motor power：5KW

Output

torque：2794N.m

Transmission

ratio：127.68：1

Output

speed：11rp/min

Rope

payout

speed：10m/min

Lifting

weight：2000kg

Self-

weight: 420kg

Drum rope

capacity: 31m

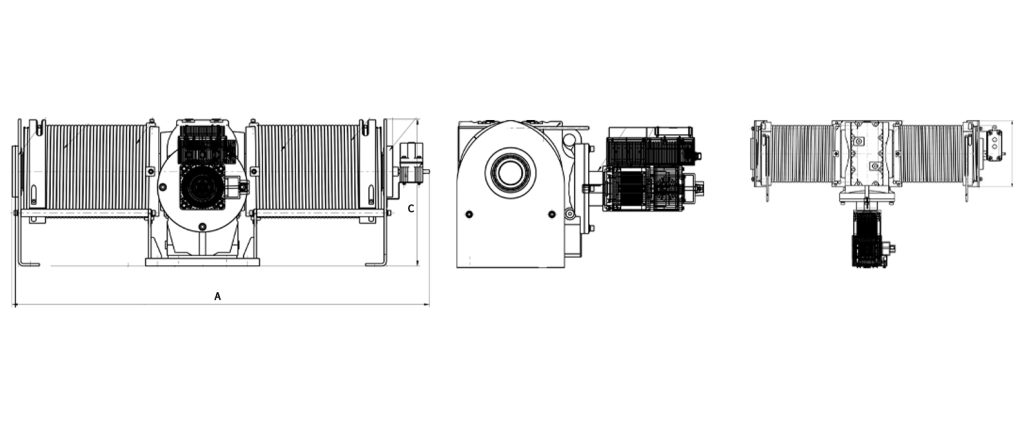

Model：2000 KG

A(Length)：1392mm

B(Width)：360mm

C(Height)：490mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
